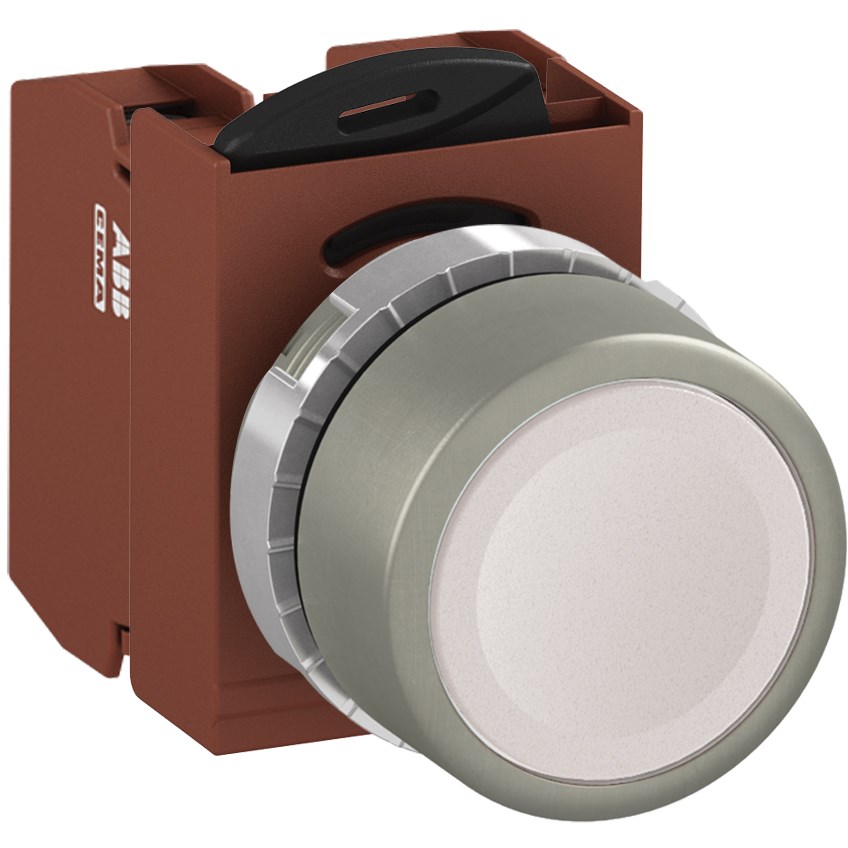

When selecting a control device for demanding industrial environments, it's crucial to focus on reliability and compliance with industry standards. This non-illuminated push button is designed with precision to meet the rigorous demands of mining, construction, and heavy industry applications.
One of its standout features is the robust degree of protection it offers. With an IP66 rating, this device ensures complete protection against dust ingress and powerful water jets from any direction. This makes it suitable for harsh outdoor conditions where exposure to elements is a concern.
The product conforms to several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These endorsements guarantee that the push button meets stringent safety and performance benchmarks required globally.
Operating efficiently in diverse environmental conditions is another key attribute. It functions reliably within an ambient temperature range of -30°C to 70°C which means it can be deployed in both frigid cold as well as hot environments without compromising performance.
In terms of electrical specifications, the push button boasts a rated insulation voltage of up to 690 V alongside a rated impulse withstand voltage of 4 kV ensuring robustness against transient overvoltages. The contact configuration features two normally open (2NO) contacts which are ideal for circuits requiring straightforward make-and-break operations.
The actuator design is flush with a diameter of 22 mm making it ergonomic while maintaining aesthetic simplicity on control panels or consoles. Its maintained function allows users to engage or disengage systems with ease depending on operational needs.
Constructed with durability in mind, the bezel material is metal offering additional resilience against physical impacts or wear over time—important factors when used in high-demand settings like those found in heavy industries.
For connectivity, this unit uses Faston terminals providing quick and secure connections simplifying installation processes significantly reducing downtime during setup or maintenance phases.
Rated for a thermal current capacity of up to 10 A this push button can handle substantial electrical loads further extending its versatility across various industrial applications without risk of overloads under normal operating conditions.
Finally available in white color provides clear visibility aiding operators during usage especially critical during emergency situations where speed matters most ensuring effective communication between human-machine interfaces seamlessly integrated into existing setups given its standard cutout size compatibility at precisely measured dimensions matching exacting requirements consistently delivering dependable service wherever deployed meeting expectations reliably every time needed most!
