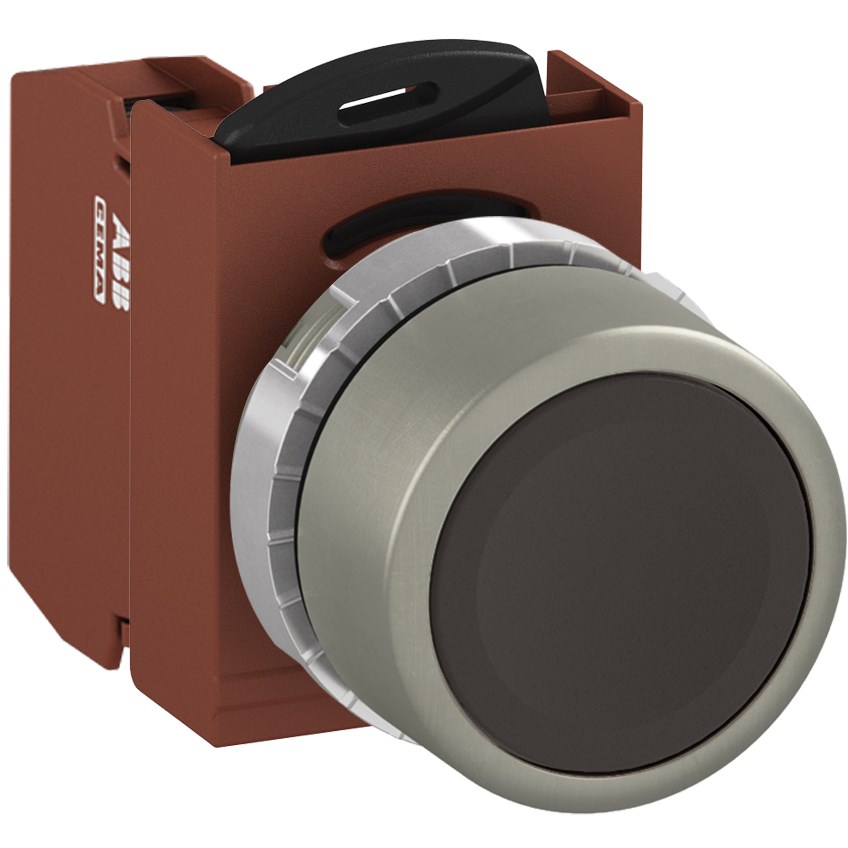

When it comes to selecting a reliable and robust push button for industrial settings, this particular model stands out with its impressive specifications tailored for demanding environments. Designed for non-illuminated applications, this push button is engineered to deliver optimal performance in sectors like mining, construction, and heavy industry.
One of the key features is its high degree of protection, rated at IP66. This ensures that the device is dust-tight and protected against powerful water jets, making it suitable for harsh conditions where resilience is paramount. The standards and approvals it meets include EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These endorsements affirm its compliance with international safety and operational benchmarks.
The ambient temperature range supported by this push button spans from -30 to 70 degrees Celsius. This broad range allows the device to function effectively in both freezing cold and sweltering heat without compromising performance or reliability.
For connectivity, the product utilizes a Faston connection type which facilitates quick installation and secure electrical connections. It boasts a rated insulation voltage of up to 690 V along with a rated impulse withstand voltage of 4 kV—features that underscore its capability to handle substantial electrical loads safely.
The contact configuration is designed as normally closed (1NC), providing an additional layer of safety by defaulting to an off position unless actively engaged. The actuator type is flush with a diameter of 22 mm—a standard size ensuring compatibility with many control panels while maintaining ease of use.
Functionality-wise, it operates momentarily; meaning it returns to its original position once released—ideal for applications requiring temporary engagement such as signaling or reset functions in machines.
Constructed with durability in mind, the bezel material is metal which adds robustness against physical impacts typical in industrial environments. The cutout size also measures at an industry-standard diameter of 22 mm facilitating straightforward integration into existing setups.
The button itself comes in black—a classic choice that offers high visibility against most panel backgrounds while maintaining a professional appearance suitable for industrial settings.
In summary, this push button combines essential features such as high protection rating, versatile temperature tolerance and compliance with rigorous standards—all crafted into a user-friendly design tailored specifically for demanding industries like mining or construction where reliability cannot be compromised under any circumstances.
