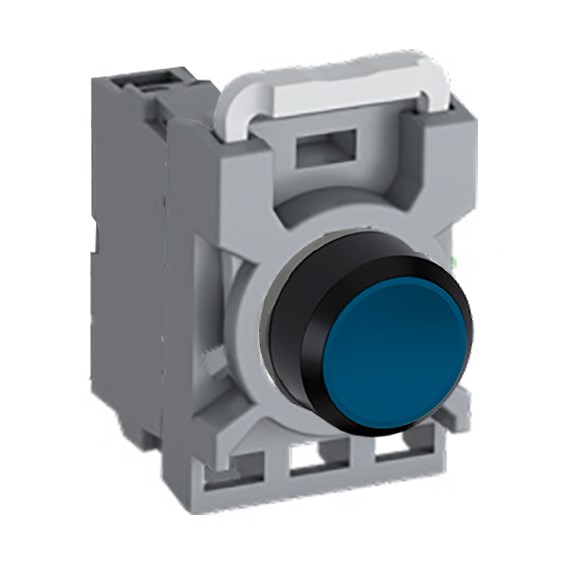

When it comes to selecting a pushbutton for industrial and commercial applications, understanding the technical specifications is crucial. This non-illuminated pushbutton offers a robust solution with its high degree of protection and adherence to international standards.
Designed for demanding environments, this pushbutton features an IP66 rating on the front, ensuring it's dust-tight and protected against powerful water jets. The terminal side is rated at IP20, providing basic protection against finger access. These ratings make it suitable for use in harsh settings where exposure to moisture or dust can be a concern.
The product complies with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 along with UL 508 and CSA C22.2 No.14 approvals. This wide range of certifications assures compatibility and safety across various regions and industries.
Operating efficiently within an ambient temperature range from -25°C to +70°C ensures reliable performance under extreme conditions—be it cold storage facilities or hot manufacturing floors. With a rated insulation voltage of up to 690 V and an impressive rated impulse withstand voltage of 6 kV, this pushbutton is well-suited for high-voltage applications while maintaining safety.
The flush actuator type provides a sleek design that minimizes accidental activation while offering ease of use in momentary operations. The button has a diameter of 22 mm which matches the cutout size needed for installation—a standard dimension that facilitates easy integration into existing systems without requiring additional modifications.
This model supports a single normally open (1NO) contact configuration making it ideal for simple control circuits where only one function needs triggering per operation cycle. It carries a rated thermal current capacity of up to 10 A supporting moderate electrical loads typical in many automation setups or equipment controls.
Constructed with durable plastic bezel material ensures longevity even under frequent usage while keeping costs manageable compared to metal alternatives without compromising on quality or performance factors essential in professional settings.
Available in blue color adds visual differentiation aiding operators during quick identification especially useful when multiple buttons are installed nearby each serving different functions thereby reducing operational errors significantly enhancing efficiency levels over time
Included components such as operator contact block holder streamline procurement processes eliminating need sourcing separate parts saving time effort during assembly phases ultimately leading towards smoother project executions overall
