Specifications

Contacts	1NC
LED Block Rated Voltage	Not Applicable
Bezel Material	Metal

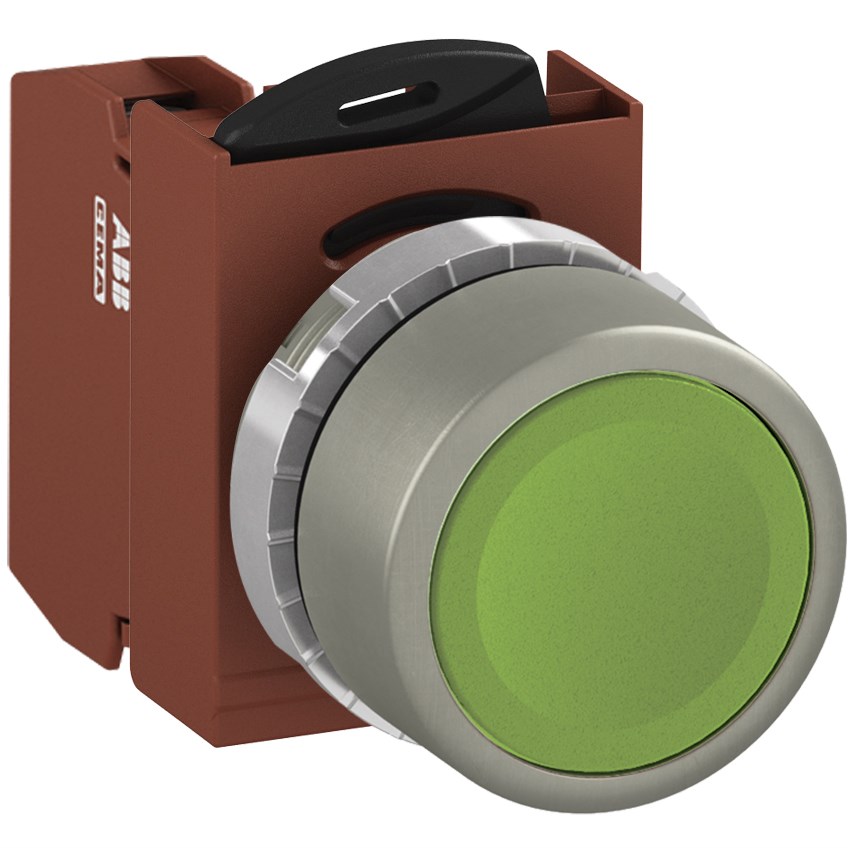

Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-30 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Metal
Button Colour	Green
Colour	Green
Connection Type	Screw
Contact Configuration	1NC
Cutout Size	22 mm
Degree of Protection	IP66
Diameter	22 mm
Function	Momentary
Illumination	Non-Illuminated
Light Blocks Type	Not Applicable
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
