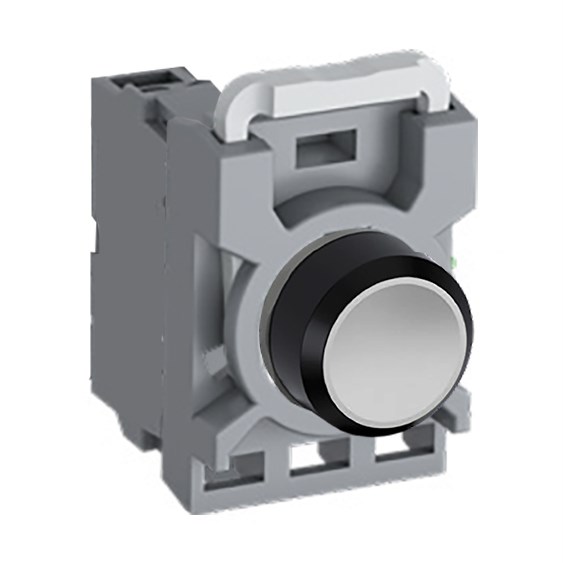

When selecting components for industrial or commercial applications, reliability and standards compliance are key. This non-illuminated pushbutton offers a robust solution with its IP66 front protection, ensuring resistance against dust and powerful water jets, making it ideal for harsh environments. The terminal side is rated at IP20, providing basic protection against finger contact.
Compliant with multiple international standards such as EN IEC 60947 series, EN IEC 60073, UL 508, and CSA C22.2 No. 14, this pushbutton ensures safety and performance across different regulatory landscapes. Its operation is suited for ambient temperatures ranging from -25 to 70 degrees Celsius, allowing flexibility in diverse climatic conditions.
The device features a flush actuator type with a diameter of 22 mm that fits standard cutout sizes seamlessly. Its momentary function makes it suitable for applications requiring temporary activation like start-stop operations in machinery or equipment panels.
With a rated insulation voltage of 690 V and an impressive rated impulse withstand voltage of 6 kV, the pushbutton can handle significant electrical demands while maintaining system integrity. The contact configuration is set as normally closed (1NC), providing reliable circuit interruption when needed.
Designed to carry a rated thermal current of up to 10 A, this component supports moderate power loads efficiently. The bezel material is made of durable plastic which enhances longevity without compromising on aesthetics or functionality.
In terms of design elements, the button comes in white color which can be easily integrated into various control panel designs without clashing visually with other components.
The package includes not just the operator but also the contact block and holder—ensuring you have all necessary parts for straightforward installation and operation right out of the box. This comprehensive inclusion minimizes downtime during setup and reduces procurement complexity by offering an all-in-one solution tailored for professional use cases.
