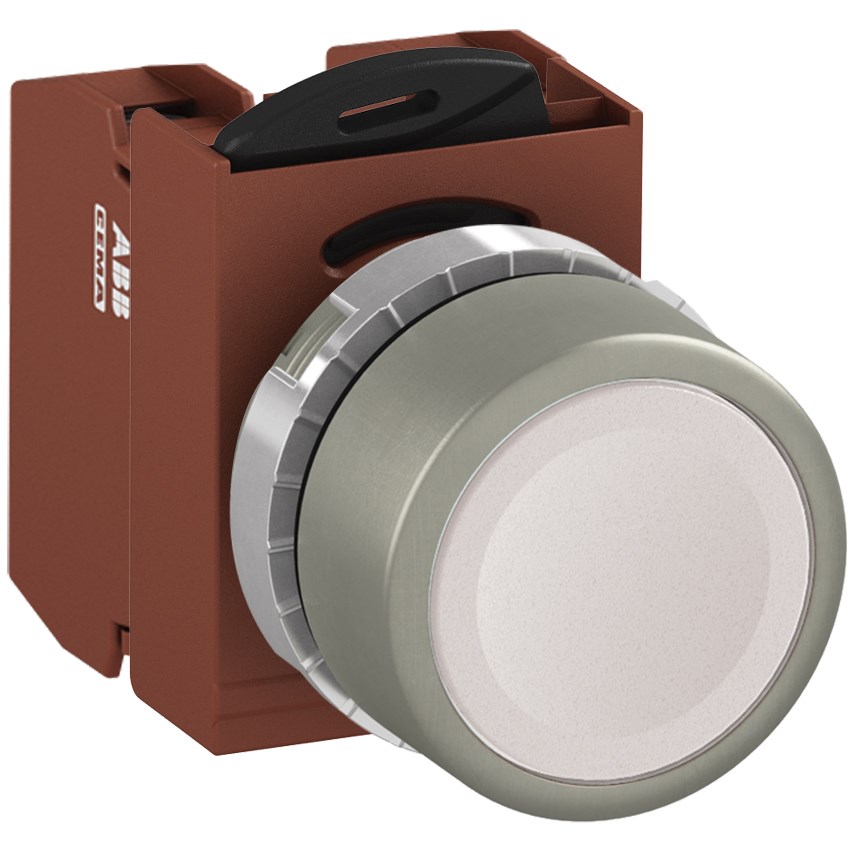

When selecting components for industrial and commercial applications, especially in sectors like mining, construction, and heavy industry, reliability and compliance with stringent standards are paramount. This non-illuminated push button switch is engineered to meet these demands with precision.
Designed to withstand the rigors of harsh environments, this unit boasts an impressive IP66 degree of protection. This rating ensures that the device is dust-tight and protected against powerful water jets, making it a robust choice for challenging outdoor and indoor settings.
The switch adheres to a suite of international standards including EN IEC 60947-5-1 and EN IEC 60947-5-5 for low-voltage switchgear and control gear, as well as EN IEC 60073 which standardizes coding principles. Compliance with UL 508 and CSA C22.2 No. 14 further underscores its safety credentials in North American markets.
Operating across a broad ambient temperature range from -30 to 70 degrees Celsius, this push button can endure extreme conditions without compromising performance. The faston connection type simplifies installation processes while ensuring secure electrical connectivity.
With a rated insulation voltage of up to 690 V and an impulse withstand voltage of 4 kV, the switch offers excellent electrical endurance. Its contact configuration is specified as two normally open (2NO), suitable for momentary operations where transient connections are required.
Constructed with durability in mind, the actuator features a flush design within a compact diameter of 22 mm—ideal for space-constrained panels or consoles. The device's bezel material is metal, providing additional robustness against physical impacts or wear over time.
Rated thermal current stands at 10 A, aligning with typical requirements for industrial controls where higher currents may be encountered intermittently during operation cycles.
Installation is straightforward thanks to its standardized cutout size of 22 mm. The white button color provides clear visibility against typical industrial backgrounds while maintaining aesthetic neutrality within diverse panel designs.
This product represents an optimal solution for professionals seeking reliable control components that meet rigorous industry standards without unnecessary complexity or cost overheads—ensuring peace of mind through every press in demanding environments.
