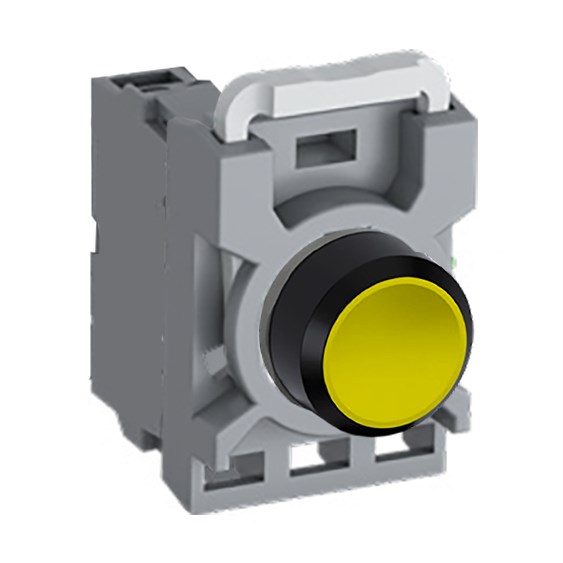

When selecting components for industrial and commercial applications, technical precision is key. This non-illuminated pushbutton offers a solid choice with its robust build and reliable functionality. Designed to meet stringent standards, it adheres to EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications.
The button features a flush actuator type with a diameter of 22 mm that fits seamlessly into standard cutouts of the same size. Its momentary function ensures that operations are executed only while the button is pressed—a vital feature in many control systems where temporary activation is required.
Engineered for durability in demanding environments, this pushbutton boasts an IP66 degree of protection at the front side—making it resistant to dust and powerful water jets—and an IP20 rating at the terminal level. Such ratings ensure longevity even under harsh conditions.
From an electrical standpoint, it supports a rated insulation voltage of up to 690 V and can handle a rated thermal current of up to 10 A. The rated impulse withstand voltage stands at an impressive 6 kV—highlighting its capability to endure transient overvoltages effectively.
Operating within a wide ambient temperature range from -25°C to +70°C allows this component to maintain performance across various climates without compromising reliability or safety.
The contact configuration includes one normally closed (1NC) contact block which is ideal for applications requiring fail-safe operation when power loss occurs. Additionally, the product comes complete with an operator, contact block and holder for straightforward installation.
With its yellow button color providing high visibility on control panels or consoles—this pushbutton not only meets functional requirements but also enhances operational efficiency through ease of identification during use.
Crafted with a plastic bezel material—it combines lightweight characteristics with sufficient toughness suitable for industrial settings where equipment may be subject to wear-and-tear over time.
Overall—whether you're outfitting new machinery or upgrading existing systems—this pushbutton delivers on both practicality and compliance ensuring your operations run smoothly while adhering strictly to industry norms.
