Specifications

Dimensions (mm)	54W x 90H x 66D
Maximum Discharge Current (8/20µs) - Imax (kA)	20
Nominal Discharge Current (8/20µs) - In (kA)	10
Reference No.	952513
Suitable For	Power Supply Systems
Weight (kg)	0.269
Breaking Capacity AC (kA)	10
No. of Conductors	2
Mounting Method	DIN Rail 35mm
Maximum Continuous Voltage AC (V)	-

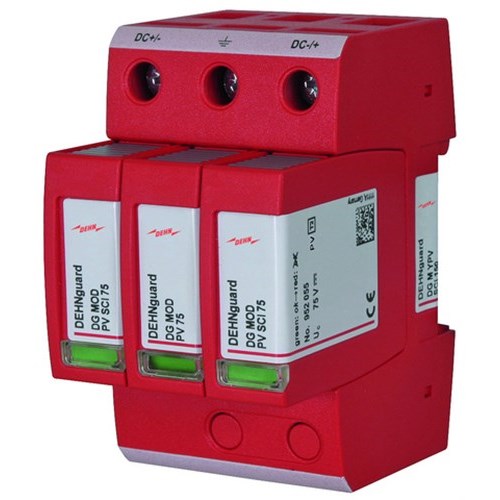

Product Type	Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	90 mm
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	20 kA ((DC+/DC-) -> PE))
Rated Short Circuit Current	10 kA
Rated Voltage	150 VDC
Response Time	<= 25 ns
SPD Class	Type 2
Standards and Approvals	KEMA, UL, CSA
Voltage Protection Level	<=0.8 kV, <=0.6 kV
Weight	269 g
Width	54 mm
