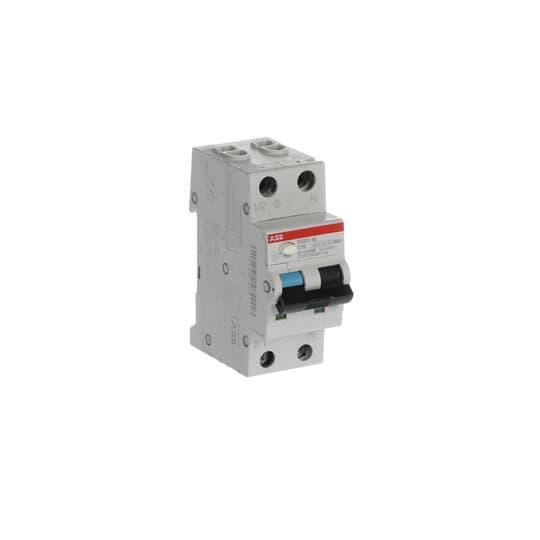

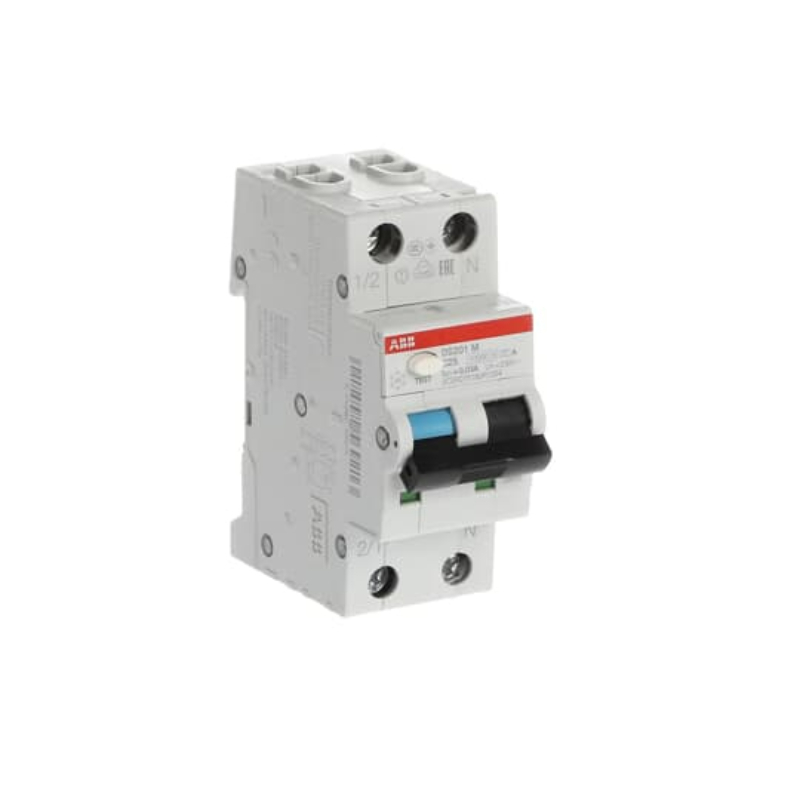

<p>When selecting the right Residual Current Circuit Breaker with Overcurrent protection (RCBO) for your industrial or commercial application, understanding the technical specifications is crucial. This RCBO is designed to provide reliable protection by combining both residual current and overcurrent functions into a single device.</p><p>Rated at 16 A, this RCBO supports a rated voltage of 240 V and a rated insulation voltage of 500 V. It can handle an impulse withstand voltage of up to 4 kV, ensuring robust performance even in environments subject to electrical surges. The breaking capacity stands at an impressive 15 kA, while its short circuit capacity reaches up to 10 kA, making it suitable for various demanding applications.</p><p>The unit features two poles and operates within a frequency range of 50/60 Hz. Its electrical durability is rated at 10,000 cycles, highlighting its longevity and reliability in continuous use. The curve type C characteristic ensures that it responds efficiently under short-circuit conditions.</p><p>Safety is further enhanced by the degree of protection IP20/IP40, which safeguards against solid objects and limited ingress from moisture when installed appropriately. The device&#39;s terminal type uses screw clamps with a tightening torque of 2.8 N-m for secure connections.</p><p>Measuring compactly at 35 mm width, 85 mm height, and 69 mm depth with a weight of just 200 g, this RCBO fits neatly into standard DIN rail mounting systems. It accommodates various cable cross sections: from solid core cables ranging between 0.75-25 sq-mm to multi-wired cables between 0.75-16 sq-mm.</p><p>The ambient temperature range spans from -25&#176;C to +55&#176;C allowing operation in diverse climates without compromising performance. Compliance with IEC/EN standards such as IEC/EN61009-1 and IEC/EN61009-2-1 indicates adherence to international safety norms.</p><p>For ease of installation and maintenance, the wire stripping length required is set at 12 mm while offering flexibility in power supply connections due to its arbitrary connection capability. The contact position indication provides clear visual feedback: red indicates ON while green signals OFF status; additionally, fault detection is made simple via a blue flag on the toggle switch.</p><p>With an overvoltage category III rating and dielectric test voltage reaching up to 2 kV this product ensures resilience against transient overvoltages commonly encountered in industrial settings.</p><p>In terms of aesthetics housing comes in RAL7035 grey providing a neutral appearance suitable for most installations without drawing unnecessary attention away from other components within your system architecture</p><p>Overall if you’re looking for efficient comprehensive circuit protection combined with user-friendly features this RCBO represents an excellent choice tailored specifically towards meeting rigorous demands found across Australian industries today</p>
