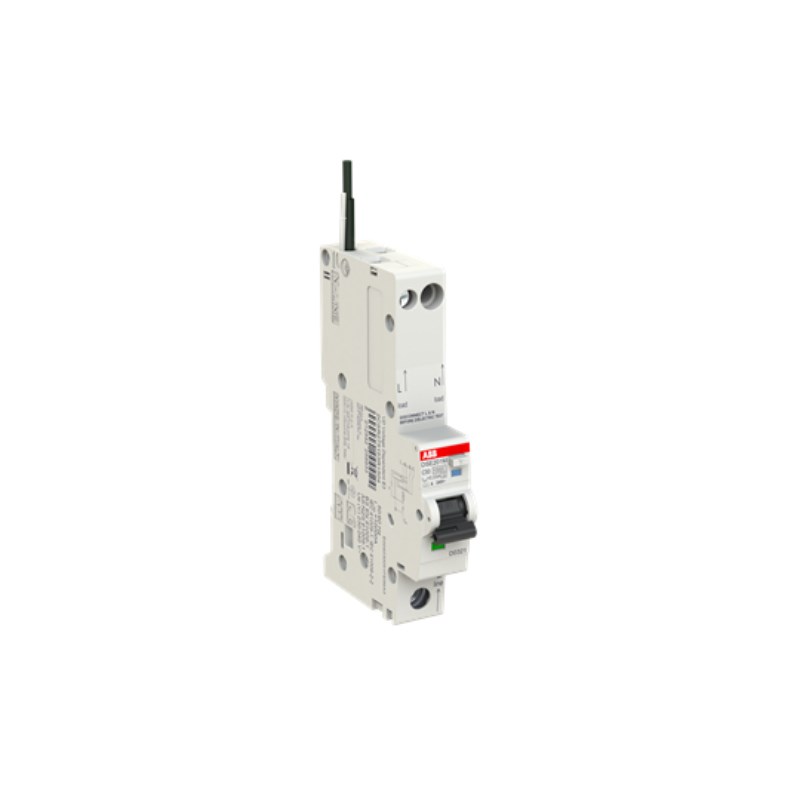

Specifications

Poles	1P+N
Breaking Capacity (kA)	15 @230 V AC
Current Rating (A)	25
Family	DSE201M
AC Voltage (V)	230/240
Icn-Rated Short Circuit Capacity (kA)	10
Impulse Withstand Voltage (kV/1.2µS)	4
Product Type	Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Ambient Temperature	-25 to 55 deg C
Breaking Capacity	15 kA
Cable Cross Section	1-35 sq-mm 1-Solid Core, 1-25 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid 1-35 sq-mm, Flexible 1-16 sq-mm
Contact Position Indication	Red ON, Green OFF
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20/IP40
Depth	69 mm
Dielectric Test Voltage	2 kV
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Energy Limiting Class	3
Fault Detection	Blue Window
Height	115 mm
Housing Colour	RAL 7035 Grey
Mounting Type	DIN Rail
Number of Poles	1P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	3.3 W
Power Supply Connection	Bottom
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	30 mA
Rated Voltage	240 V
Residual Current Type	Type A
Short Circuit Capacity	10 kA
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1, BS EN 61009-1
Terminal Type	Screw Clamp
Test Voltage	195-264 V
Trip Curve	C Curve
Weight	200 kg
Width	18 mm
Wire Stripping Length	11 mm Top, 12.5 mm Bottom
