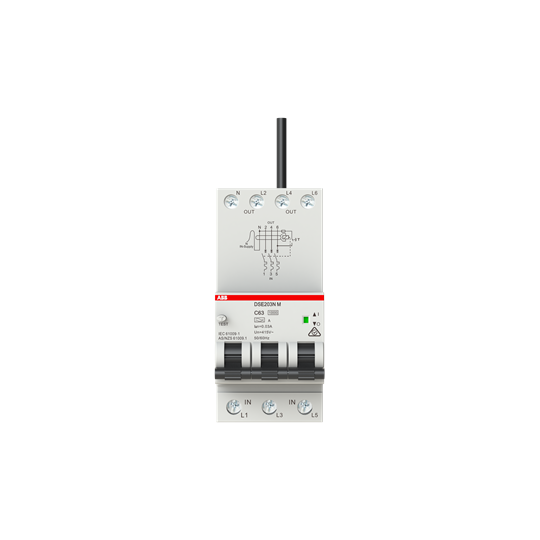

<p>When it comes to ensuring the safety and efficiency of electrical installations, selecting the right Residual Current Circuit Breaker with Overcurrent protection (RCBO) is crucial. This RCBO offers a robust solution for industrial and commercial applications, providing reliable performance tailored to meet demanding technical requirements.</p><p>Rated at 16 A, this RCBO supports a rated voltage of 400/415 VAC and ensures protection against overcurrents with a short circuit capacity of 10 kA. It operates within a frequency range of 50/60 Hz, making it versatile for various electrical systems. The device features a residual current type A with an instantaneous operating characteristic, offering enhanced protection by quickly disconnecting in case of fault currents as low as 30 mA.</p><p>Designed for durability, it boasts an impressive electrical lifespan of up to 10,000 cycles. Its compact form factor measures at a width of 53.4 mm, height of 117.5 mm, and depth of 71.6 mm while weighing just 0.549 kg—making installation straightforward without compromising on space constraints.</p><p>The RCBO adheres to rigorous standards including IEC 61009-1, IEC 61009-2-2, and AS/NZS 61009-1 certifications ensuring compliance with international safety regulations. Rated impulse withstand voltage stands at an impressive 4 kV while insulation voltage is rated at up to 500 V.</p><p>In terms of connectivity and flexibility in wiring options—cable cross-sections accommodate solid-core wires ranging from 1-25 sq-mm or multi-wired cables from 1-16 sq-mm; busbar connections are supported up to a capacity of ten square millimeters rigidly or flexibly between one-to-sixteen square millimeters respectively.</p><p>With its IP20 degree protection rating alongside IP2 pollution degree classification—the device is engineered specifically for environments where moisture ingress needs careful consideration but remains suitable primarily indoors due largely thanks also given overvoltage category III specification which indicates resilience towards transient voltages common across industrial settings too!</p><p>The ambient temperature range spans -5&#176;C through +55&#176;C ensuring continued operation under varying climatic conditions found throughout Australia’s diverse landscape whilst power loss recorded only being negligible around approximately nine watts further enhances efficiency metrics overall contributing positively toward energy conservation efforts alike!</p><p>Finally—and importantly—the bottom connection facilitates seamless integration into existing setups thereby minimizing downtime during maintenance periods henceforth proving invaluable asset long-term investment perspective indeed!</p>
