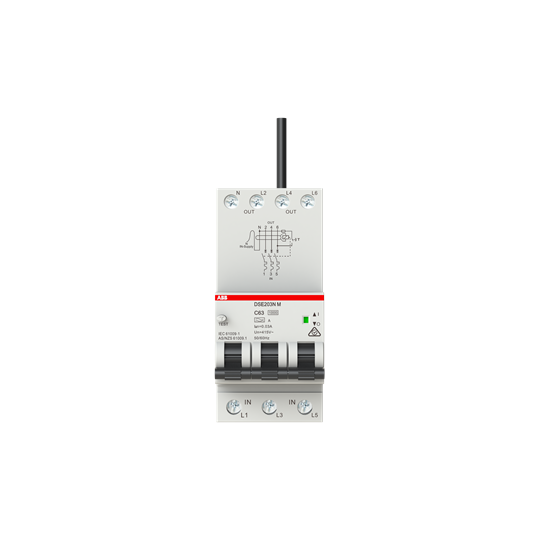

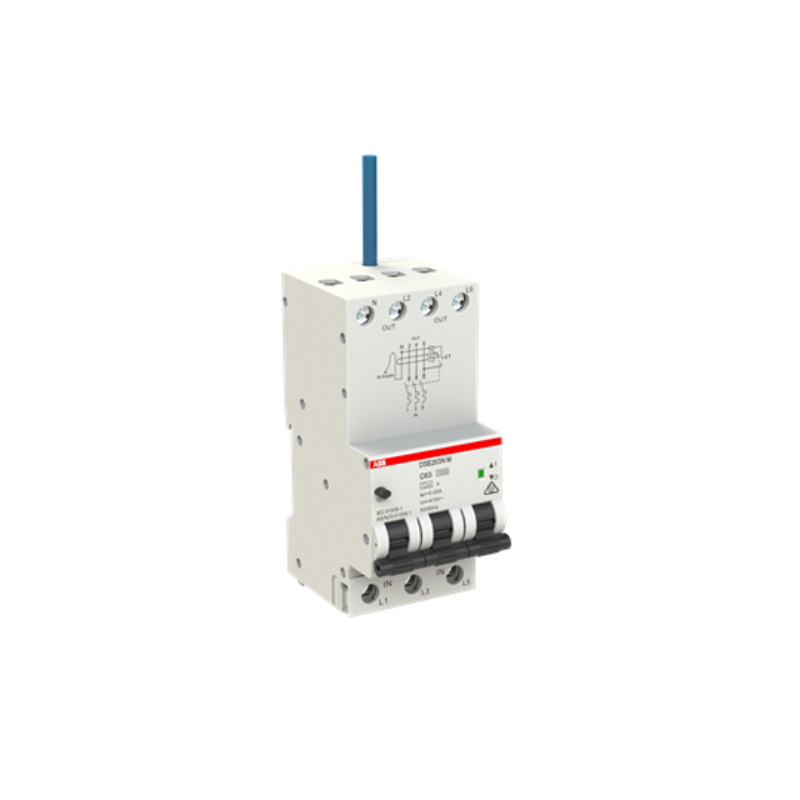

<p>When it comes to ensuring electrical safety and reliability in both industrial and commercial settings, choosing the right Residual Current Circuit Breaker with Overcurrent protection (RCBO) is crucial. This RCBO offers a robust solution designed to meet diverse technical requirements while maintaining high performance standards.</p><p>Rated for a current of 63 A, this RCBO is well-suited for demanding applications where consistent operation is key. It operates efficiently within a rated voltage range of 400/415 VAC at frequencies of 50/60 Hz, making it adaptable across various installations. Safety remains paramount with its rated impulse withstand voltage of 4 kV and insulation voltage up to 500 V, providing reliable protection against transient overvoltages.</p><p>The device&#39;s short circuit capacity stands at an impressive 10 kA, ensuring resilience under fault conditions. With electrical durability reaching up to 10,000 cycles, this RCBO promises longevity in service life while minimizing maintenance needs.</p><p>For installation flexibility, the RCBO accommodates a cable cross-section ranging from solid-core wires between 1-25 sq-mm to multi-wired cables from 1-16 sq-mm. Its connecting capacity supports busbars up to 10 sq-mm and rigid or flexible connections within specified ranges.</p><p>Designed with practicality in mind, the compact dimensions—53.4 mm width, 117.5 mm height, and depth of just 71.6 mm—allow seamless integration into existing panels without compromising space efficiency. The unit weighs merely 0.549 kg for easy handling during installation or maintenance tasks.</p><p>In terms of environmental adaptability, this RCBO performs reliably within ambient temperatures ranging from -5&#176;C to +55&#176;C and adheres to the IP20 degree of protection standard—a testament to its suitability for indoor use under normal conditions.</p><p>Safety features include an instantaneous operating characteristic combined with an undelayed earthing switch type that ensures rapid response during fault occurrences. The device also boasts Type A residual current detection at a rated short circuit current level of 30 mA—ideal for safeguarding against electric shocks due to direct contact or potential fire hazards caused by earth faults.</p><p>Compliance with international standards such as IEC 61009-1 and IEC 61009-2-2 alongside AS/NZS approvals guarantees that this product meets stringent regulatory requirements applicable across different regions including Australia.</p><p>Finally yet importantly is its Curve Type C classification which indicates moderate tripping delay suitable when dealing predominantly inductive loads like motors thus preventing nuisance tripping whilst still offering adequate protection levels whenever necessary making it versatile enough no matter what your specific application may demand!</p><p>This comprehensive feature set makes our RCBO not only reliable but also adaptable enough ensuring optimal performance whatever your industry demands might be!</p>
