Specifications

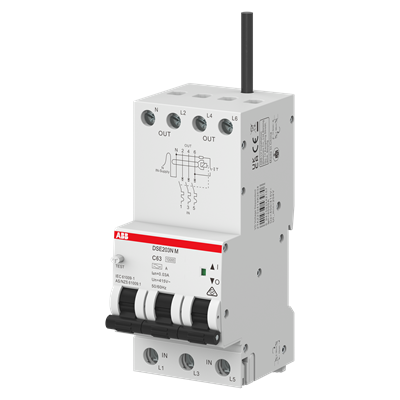

Product Type	Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Ambient Temperature	-5 to 55 deg C
Cable Cross Section	1-25 sq-mm 1-Solid-Core, 1-16 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	71.6 mm
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Height	117.5 mm
Number of Poles	3P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	30.96 W
Power Supply Connection	Bottom
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	30 mA
Rated Voltage	400/415 VAC
Residual Current Type	Type A
Short Circuit Capacity	10 kA
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009-1
Weight	0.549 kg
Width	53.4 mm
