Specifications

No. of Poles	3P+N
Operational Temperature Range (°C)	-25 to +70
Rated Current (A)	6
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage AC (V)	500
Rated Operational Voltage AC (V)	415
Rated Residual Current (mA)	30
Breaking Capacity 415V AC - Icu (kA)	10
Dimensions (mm)	53.4Wx117.5Hx71.6D
Type of Residual Current	A
Poles	3P+N
Breaking Capacity (kA)	10 @415 V AC
Current Rating (A)	6
Family	DSE200
AC Voltage (V)	400/415
Impulse Withstand Voltage (kV/1.2µS)	4

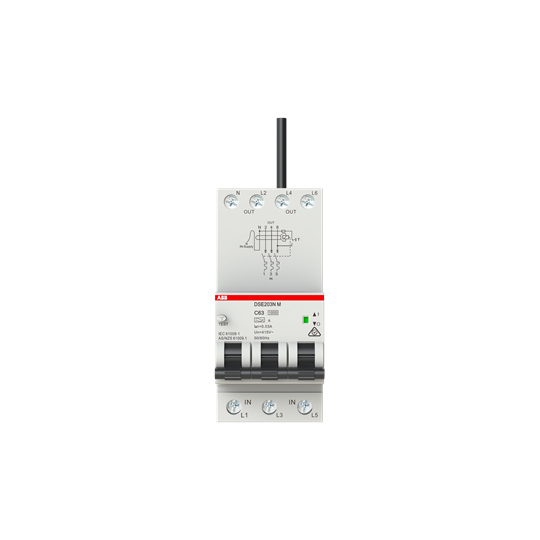

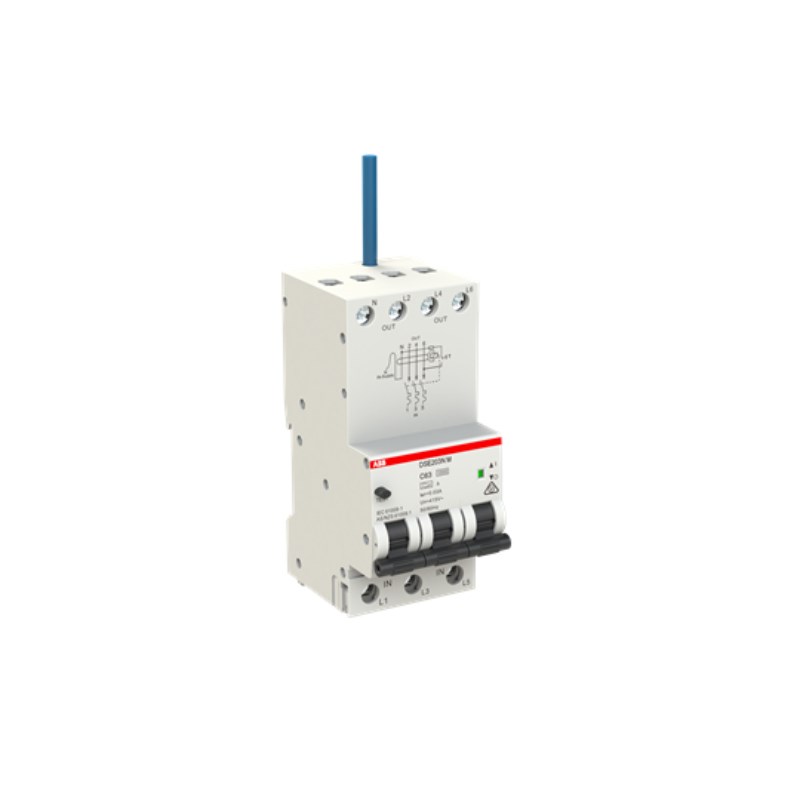

Product Type	Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Series	DSE200
Ambient Temperature	-5 to 55 deg C
Cable Cross Section	1-25 sq-mm 1-Solid-Core, 1-16 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	71.6 mm
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Height	117.5 mm
Number of Poles	3P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	3.52 W
Power Supply Connection	Bottom
Rated Current	6 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	30 mA
Rated Voltage	400/415 VAC
Residual Current Type	Type A
Short Circuit Capacity	10 kA
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009-1
Terminal Type	Pillar terminals
Trip Curve	C Curve
Weight	0.549 kg
Width	53.4 mm
