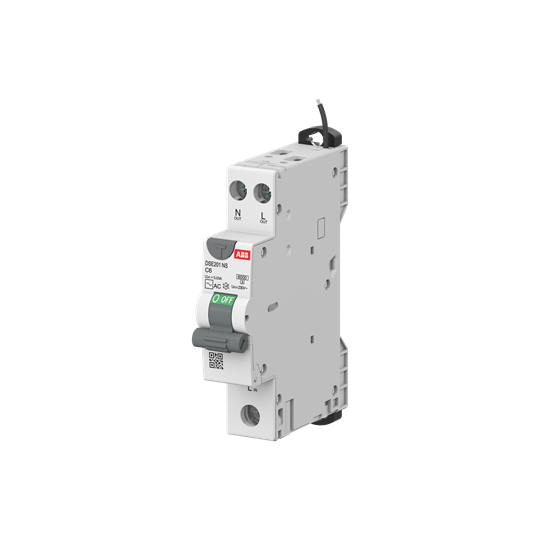

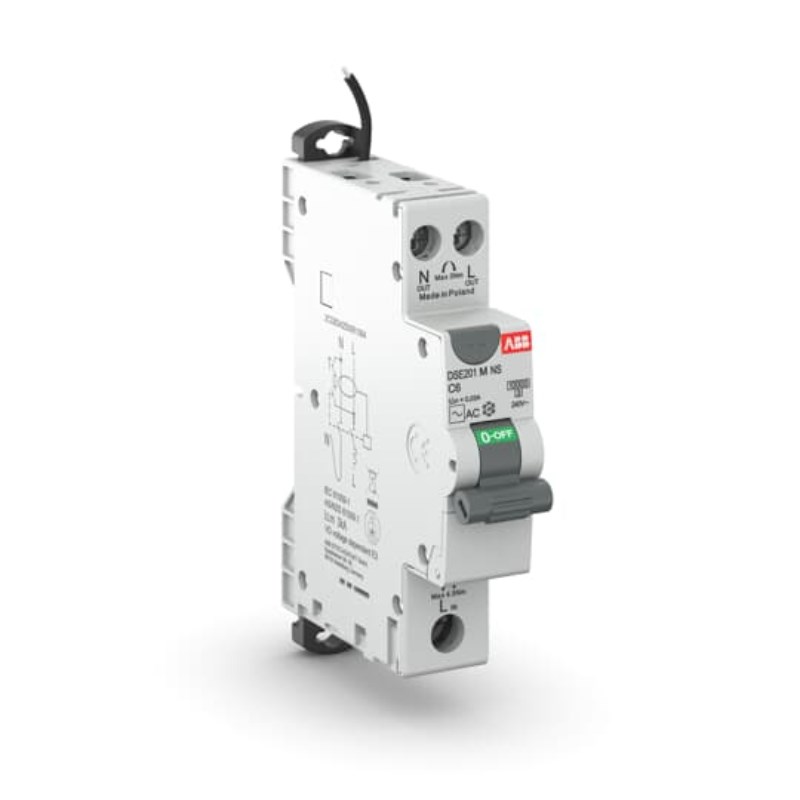

ABB DSE201C10A10NS Residual Current Circuit Breaker with Overcurrent Protection 6kA 1P+N-P 10mA 10A C-Curve TypeA IP20

Product Code: DSE201C10A10NS

  • Rated at 10 A with 6 kA breaking capacity
  • Compact design: 17.8 mm width
  • Complies with IEC and AS/NZS standards
  • Suitable for -25 to 55°C environments
  • DIN rail mountable with screw clamp terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 1P+N
Pollution Degree 3
Rated Current (A) 10
Rated Frequency (Hz) 50/60
Rated Insulation Voltage DC (V) 440
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Operational Voltage AC (V) 240
Rated Residual Current (mA) 10
Rated Voltage AC (V) 230
AC Voltage (V) 240/415
Impulse Withstand Voltage (kV/1.2µS) 6
Current Rating (A) 10
Family DSE201NS
Product Type Residual Current Circuit Breaker with Overcurrent Protection
Brand ABB
Series DSE201NS
Ambient Temperature -25 to 55 deg C
Application Commercial and Industrial
Breaking Capacity 6 kA
Cable Cross Section 1-35 sq-mm 1-Solid Core, 1-25 sq-mm 4-Multi-Wired
Connecting Capacity Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Contact Position Indication Red ON, Green OFF
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20
Depth 70 mm
Dielectric Test Voltage 2.5 kV
Earthing Switch Type Undelayed
Electrical Durability 10000 Cycles
Energy Limiting Class 3
Height 86 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group I, RAL 7035
Mounting Type DIN Rail
Number of Poles 1P+N
Operating Characteristic Instantaneous
Overvoltage Category III
Power Loss 2 W
Power Supply Connection Bottom
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 10 mA
Rated Voltage 240 V
Residual Current Type Type A
Short Circuit Capacity 6 kA
Standards and Approvals IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type Screw Clamp
Test Voltage 184-264 V
Weight 0.187 kg
Width 17.8 mm
Wire Stripping Length 13 mm

Description

The ABB RCBO is a compact combined MCB/RCD that offers 6kA protection at 230VAC. It has a single pole and neutral (1P+N) configuration with a current rating of 10A. The device features a C curve and Type A sensitivity, providing 10mA neutral switching. It provides protection against short circuits, thermal overload, and earth leakage. The ABB RCBO is designed for use in commercial and industrial applications.
