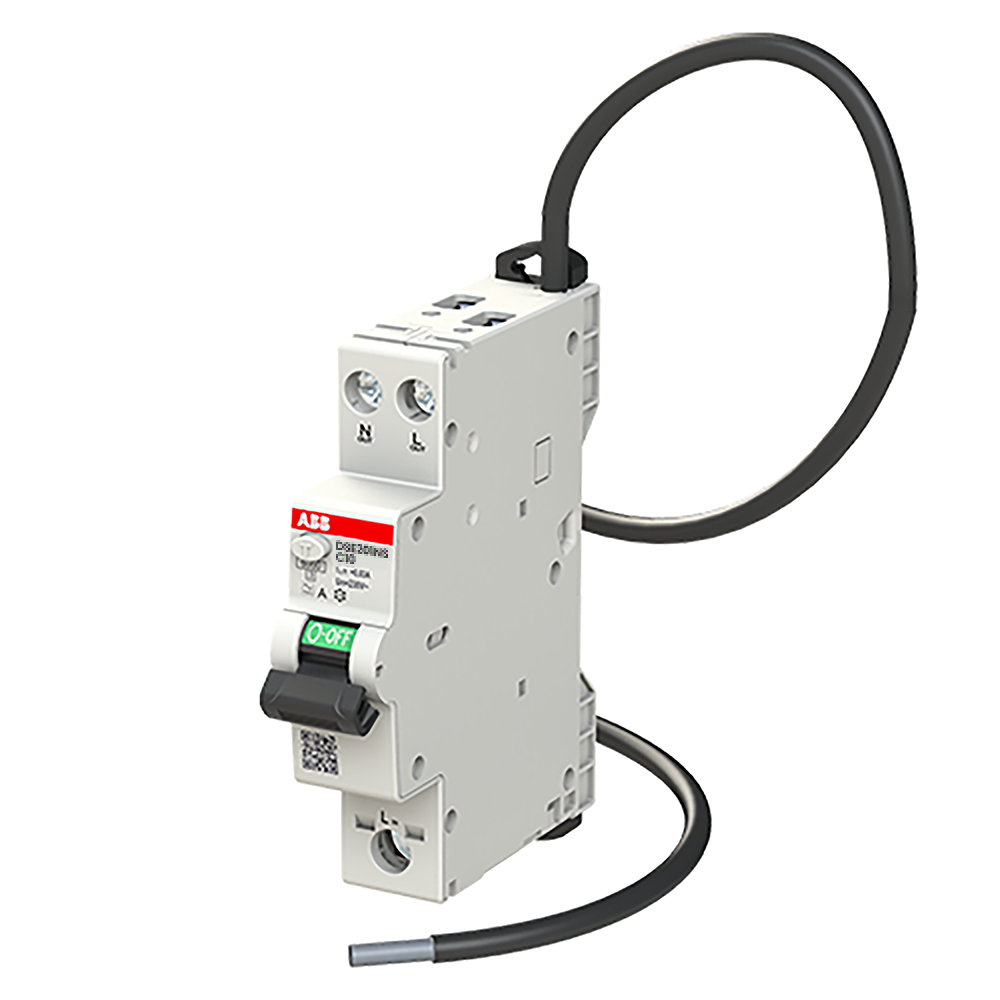

Product Code: DSE201C10A30NS

Rated current of 10 A, ideal for various applications
Compact size with width of 17.8 mm
High breaking capacity of 6 kA ensures safety
Meets IEC and AS/NZS standards for reliability
Type A residual current protection for added security

Specifications

No. of Poles	1P+N
Pollution Degree	3
Rated Current (A)	10
Rated Frequency (Hz)	50/60
Rated Insulation Voltage DC (V)	440
Rated Short-Circuit Capacity - Icn (kA)	6
Rated Residual Current (mA)	30
Rated Voltage AC (V)	230
Family	DSE201NS
Neutral Switching	Yes
Rated Impulse Withstand Voltage (1.2/50µs)	4
Product Type	Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Series	DSE201NS
Ambient Temperature	-25 to 55 deg C
Application	Commercial and Industrial
Breaking Capacity	6 kA
Cable Cross Section	1-35 sq-mm 1-Solid Core, 1-25 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Contact Position Indication	Red ON, Green OFF
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	70 mm
Dielectric Test Voltage	2.5 kV
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Energy Limiting Class	3
Height	86 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group I, RAL 7035
Mounting Type	DIN Rail
Number of Poles	1P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	2 W
Power Supply Connection	Bottom
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	30 mA
Rated Voltage	240 V
Residual Current Type	Type A
Short Circuit Capacity	6 kA
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type	Screw Clamp
Test Voltage	179-264 V
Weight	0.187 kg
Width	17.8 mm
Wire Stripping Length	13 mm

Description

The ABB RCBO is a compact combined MCB/RCD designed for commercial and industrial use. It has a breaking capacity of 6kA at 230VAC and is suitable for single-phase and neutral applications. With a current rating of 10A and a C curve, it provides protection against short circuits, thermal overload, and earth leakage. The Type A RCBO also features 30mA neutral switching capability.
