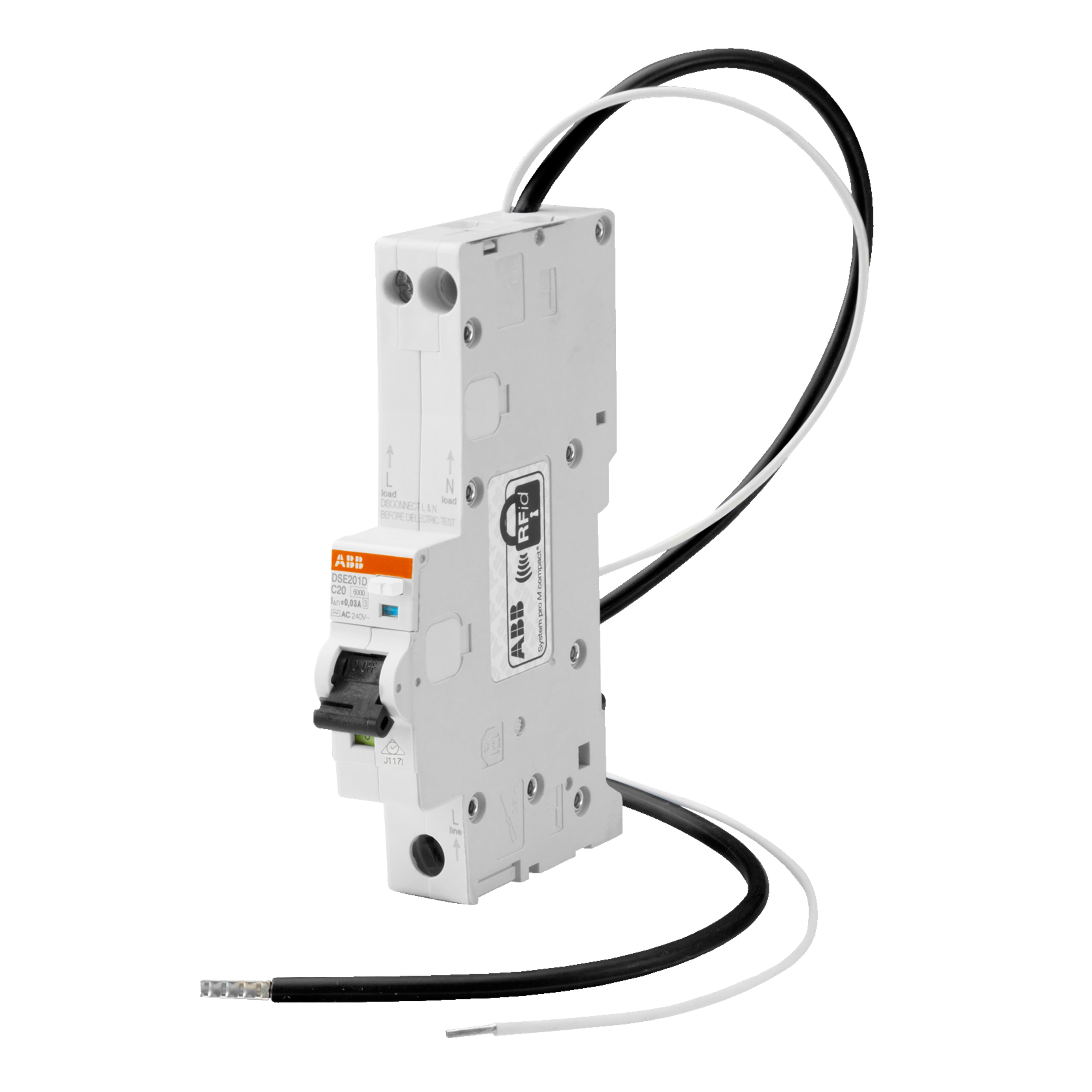

ABB DSE201DC40A30 Residual Current Circuit Breaker with Overcurrent Protection 10kA 1-P 30mA 40A C-Curve TypeA IP40

Product Code: DSE201DC40A30

  • Long Body RCBO, rated 40 A, 230/240 VAC
  • Breaking capacity of 6 kA with IP20/IP40 protection
  • Screw clamp terminals; torque: 1.2 N-m, 2.8 N-m
  • DIN rail mountable with C curve type
  • Complies with IEC & AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 1
Power Loss (W) 1.8
Rated Current (A) 40
Rated Frequency (Hz) 50 - 60
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Residual Current (mA) 30
Dimensions (mm) 17.5W x 115H x 69L
Ambient Temperature Range (°C) -25 to 55
Tightening Torque (Nm) Top: 1.2 N·m Bottom: 2.8 N·m
Type of Residual Current Type A
Weight (kg) 0.2
Rated Operational Voltage (V) 230 / 240
No. of Protected Poles 1
Wire Stripping Length (mm) Top: 11 mm Bottom: 12.5 mm
Standards IEC 61009-1 IEC 61009-2-2 AS/NZS 61009.1
Product Type Residual Current Circuit Breaker with Overcurrent Protection
Brand ABB
Ambient Temperature -25 to 55 deg C
Breaking Capacity 6 kA
Cable Cross Section 16-35 sq-mm 1-Solid Core, 16-16 sq-mm 4-Multi-Wired
Connecting Capacity Busbar 10 sq-mm, Rigid 1-35 sq-mm, Flexible 1-16 sq-mm
Contact Position Indication Red ON, Green OFF
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Dielectric Test Voltage 2 kV
Earthing Switch Type Undelayed
Electrical Durability 10000 Cycles
Energy Limiting Class 3
Fault Detection Blue Window
Height 115 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 1
Operating Characteristic Instantaneous
Overvoltage Category III
Power Loss 5.5 W
Power Supply Connection Bottom
Rated Current 40 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 30 mA
Rated Voltage 230/240 VAC
Residual Current Type Type A
Short Circuit Capacity 10 kA
Standards and Approvals IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type Screw Clamp
Test Voltage 195-264 V
Tightening Torque 1.2 N-m, 2.8 N-m
Trip Curve C
Weight 200 g
Width 17.5 mm
Wire Stripping Length 11 mm Top, 12.5 mm Bottom
