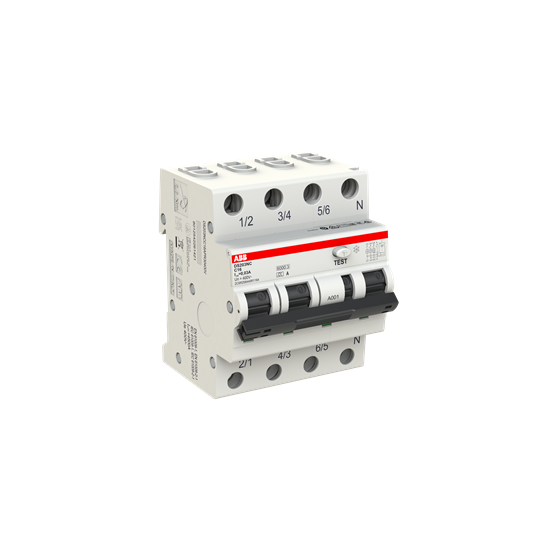

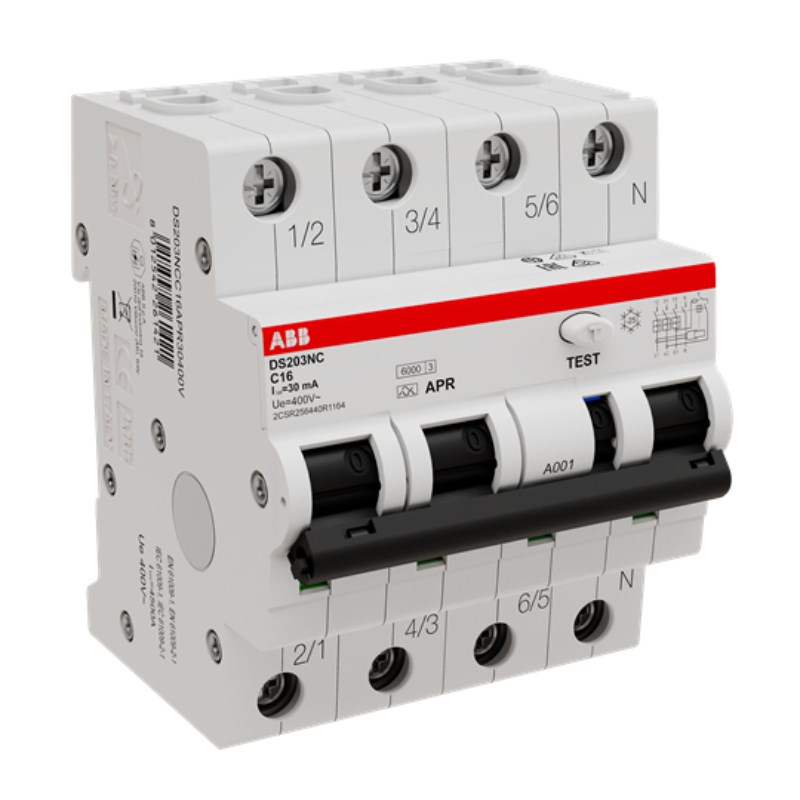

When it comes to selecting the right Residual Current Circuit Breaker with Overcurrent Protection (RCBO) for your industrial or commercial needs, understanding the specifications and capabilities of the product is crucial. This RCBO offers a comprehensive set of features that cater to a variety of electrical protection requirements.
The RCBO is designed for a rated current of 16 A, making it suitable for moderate load applications. It operates efficiently within a rated voltage of 415 V and has an impressive rated impulse withstand voltage of 4 kV, ensuring robust performance against transient overvoltages. With a rated insulation voltage of 500 V, this device provides reliable isolation under standard operating conditions.
Safety and reliability are at the forefront with its breaking capacity of 10 kA and short circuit capacity rated at 6 kA. The device adheres to stringent standards including IEC 61009-1, IEC 61009-2-1, EN 61009-1, and EN 61009-2-1, which affirm its compliance with international safety benchmarks.
In terms of physical dimensions, this RCBO measures a compact width of 71 mm by height of 85 mm by depth of 69 mm and weighs in at just 480 g. This makes installation straightforward without compromising on space efficiency in distribution panels.
The device boasts an IP2X degree of protection which safeguards against solid objects greater than 12.5 mm in diameter while maintaining safety during operation. The curve type C characteristic allows it to handle surges typical in commercial settings without nuisance tripping.
For those concerned about operational longevity, this RCBO promises durability with an electrical endurance rating up to an impressive 10,000 cycles. Its ambient temperature range from -25°C to +55°C ensures reliable operation across diverse environmental conditions found throughout Australia.
The connecting capacity accommodates various cable types: busbar connections up to 10 sq-mm as well as rigid and flexible cables ranging from single-core solid wires up to multi-wired configurations (25 sq-mm). Furthermore, its arbitrary power supply connection enhances flexibility during installation processes.
This RCBO also features Type A residual current detection which is sensitive enough to detect both AC and pulsating DC currents—ideal for modern installations where electronic devices are prevalent. Additionally, its undelayed earthing switch type ensures immediate response during fault conditions providing peace-of-mind protection for personnel and equipment alike.
Overall designed under Overvoltage Category III classification indicates suitability even in environments subjecting equipment higher levels potential transient voltages such as industrial facilities distribution substations etc., offering comprehensive solution meet demanding technical requirements confidently effectively efficiently every time need arises.
