Specifications

Ambient Temperature Range (°C)	-25 to 55
No. of Poles	2
Rated Current (A)	25
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	500
Type of Residual Current	Type A
Weight (kg)	0.225
Rated Voltage (V)	230
Dimensions (mm)	35W x 85H x 69D
Rated Operational Voltage (V)	230
Minimum Mechanical Life	20000 Cycles
Minimum Electrical Life	10000 Cycles
Standards	IEC/EN 61008, IEC/EN 62424

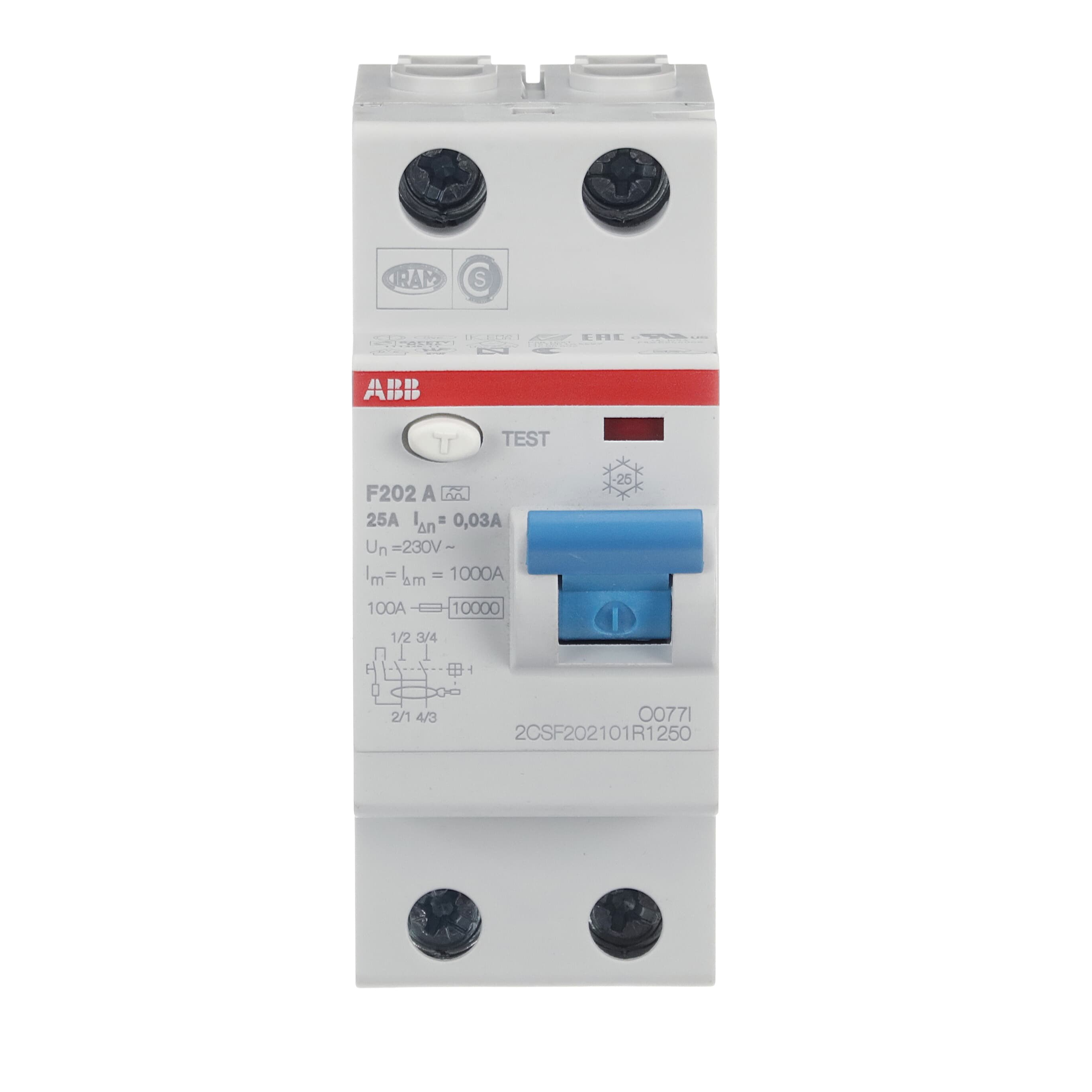

Product Type	Residual Current Circuit Breaker
Brand	ABB
Ambient Temperature	-25 to 55 deg C
Cable Cross Section	0-25 sq-mm 4-Multi-Wired, 25-25 sq-mm 1-Solid-Core
Connecting Capacity	Busbar 10 sq-mm, Rigid 25-25 sq-mm, Flexible 25-25 sq-mm
Degree of Pollution	IP2
Degree of Protection	IP20/IP40
Depth	69 mm
Electrical Durability	1000 Cycles
Height	85 mm
Mounting Type	DIN Rail
Number of Poles	2
Operating Characteristic	Instantaneous
Power Loss	1 W
Power Supply Connection	Arbitrary
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	10 kA
Rated Voltage	230 V
Residual Current Type	Type A
Terminal Type	Screw Clamp
Test Voltage	110-254 V
Tightening Torque	2.8 N-m
Weight	200 g
Width	35 mm
Wire Stripping Length	12 mm
