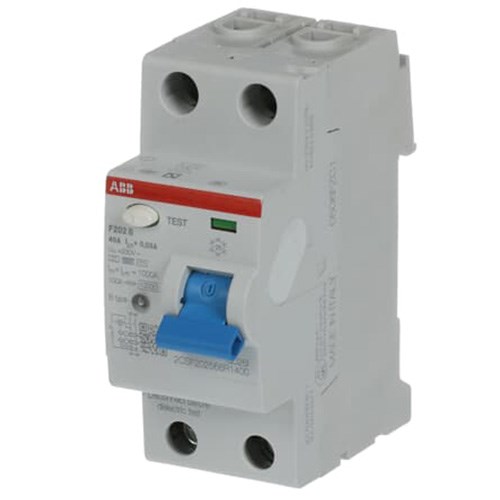

ABB F202B40/0.03 Residual Current Circuit Breaker 2-P 40A 10kA 30mA Type B

Product Code: F202B40/0.03

  • 40 A rated current, 230 VAC
  • IP20/IP40 protection rating
  • 2-pole DIN rail mountable
  • Instantaneous operation, Type B residual current
  • Screw clamp terminals with 2.8 N-m torque
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 2P
Power Loss (W) 3.6
Rated Conditional Short-Circuit Current - Inc (kA) 10
Pollution Degree 3
Rated Current (A) 40
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 440
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 30
Rated Voltage AC (V) 230/400
Test Voltage (kV) 0.17-0.253
Type of Residual Current B
Poles 2P
Current Rating (A) 40
Family F200
AC Voltage (V) 230/240
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Residual Current Circuit Breaker
Brand ABB
Series F200
Ambient Temperature -25 to 65 deg C
Application Commercial and Industrial
Breaking Capacity 30 mA
Cable Cross Section 25 sq-mm
Connecting Capacity Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-25 sq-mm
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Electrical Durability 1000 Cycles
Environmental Condition 28 Cycle with 55 deg C, 90-96% and 25 deg C
Height 85 mm
Mounting Type DIN Rail
Number of Poles 2
Operating Characteristic Instantaneous
Power Loss 3.6 W
Rated Current 40 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 10 kA
Rated Voltage 230 VAC
Residual Current Type Type B
Terminal Type Screw Clamp
Test Voltage 170-253 V
Tightening Torque 2.8 N-m
Weight 200 g
Width 35 mm
Wire Stripping Length 12 mm

Description

The ABB RCCB is a Type B 30mA circuit breaker designed for commercial and industrial use. It offers protection against earth leakage faults and has a rating of 10kA at 230VAC. This single pole plus neutral (1P+N) device has a current rating of 40A.
