Specifications

Ambient Temperature Range (°C)	-25 to 55
Dimensions (mm)	70W x 85H x 69D
No. of Poles	4
Rated Current (A)	40
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	500
Type of Residual Current	Type A
Weight (kg)	0.375
Rated Voltage (V)	400
Rated Operational Voltage (V)	400
Standards	IEC/EN 61008, IEC/EN 62431
Minimum Mechanical Life	20000 Cycles
Minimum Electrical Life	10000 Cycles

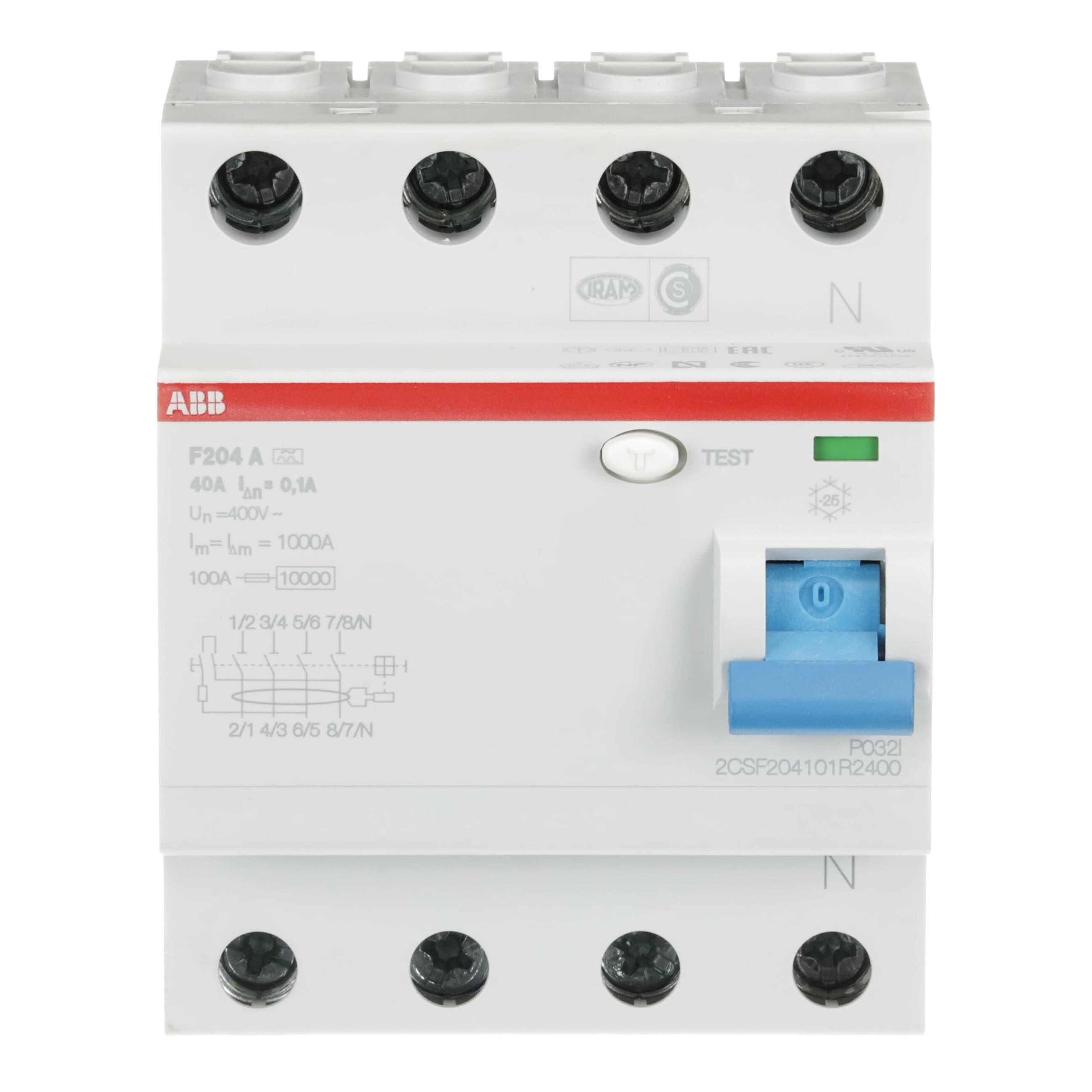

Product Type	Residual Current Circuit Breaker
Brand	ABB
Ambient Temperature	-25 to 55 deg C
Cable Cross Section	0-25 sq-mm 4-Multi-Wired, 25-25 sq-mm 1-Solid-Core
Connecting Capacity	Busbar 10 sq-mm, Rigid 25-25 sq-mm, Flexible 25-25 sq-mm
Degree of Pollution	IP2
Degree of Protection	IP20/IP40
Depth	69 mm
Electrical Durability	1000 Cycles
Height	85 mm
Mounting Type	DIN Rail
Number of Poles	4
Operating Characteristic	Instantaneous
Power Loss	3.2 W
Power Supply Connection	Arbitrary
Rated Current	40 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	10 kA
Rated Voltage	230/400 VAC
Residual Current Type	Type A
Terminal Type	Screw Clamp
Test Voltage	110-254 V
Tightening Torque	2.8 N-m
Weight	360 g
Width	70 mm
Wire Stripping Length	12 mm
