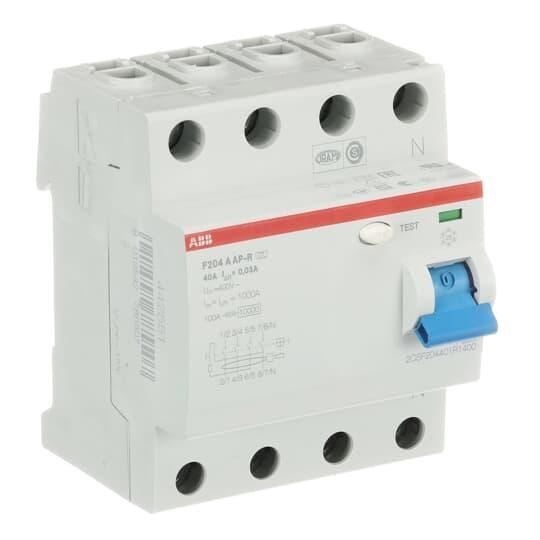

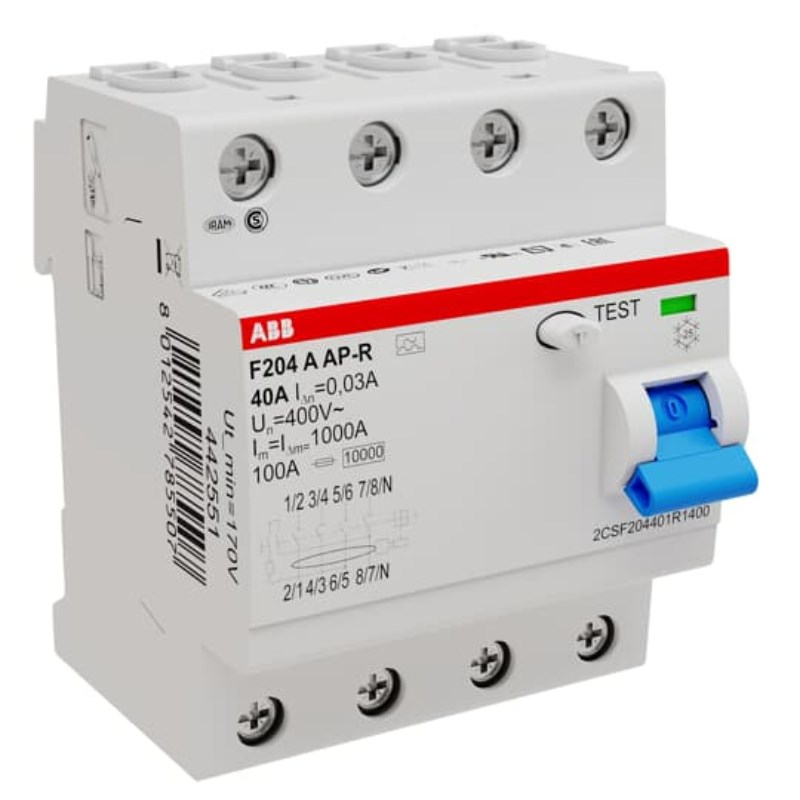

ABB F204A40AP-R Residual Current Circuit Breaker 4-P 40A 10kA 30mA TypeA

Product Code: F204A40AP-R

  • Rated current of 40 A for reliable performance
  • Suitable for 230/400 VAC systems
  • IP20/IP40 protection rating ensures safety
  • Compact size: 70x85x69 mm, easy DIN rail mount
  • Supports Type A residual current detection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 4P
Power Loss (W) 3.2/pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Pollution Degree 2
Rated Current (A) 40
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 230/400
Rated Residual Current (mA) 30
Rated Voltage AC (V) 240/415
Type of Residual Current AP-R
Poles 4P
Current Rating (A) 40
Family F200
AC Voltage (V) 230/400
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Residual Current Circuit Breaker
Brand ABB
Series F200
Ambient Temperature -25 to 55 deg C
Application Commercial and Industrial
Breaking Capacity 30 mA
Cable Cross Section 0-25 sq-mm 4-Multi-Wired, 25-25 sq-mm 1-Solid-Core
Connecting Capacity Busbar 10 sq-mm, Rigid 25-25 sq-mm, Flexible 25-25 sq-mm
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Electrical Durability 1000 Cycles
Height 85 mm
Mounting Type DIN Rail
Number of Poles 4
Operating Characteristic Instantaneous
Power Loss 3.2 W
Power Supply Connection Arbitrary
Rated Current 40 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 10 kA
Rated Voltage 230/400 VAC
Residual Current Type Type A
Terminal Type Screw Clamp
Test Voltage 170-254 V
Tightening Torque 2.8 N-m
Weight 360 g
Width 70 mm
Wire Stripping Length 12 mm

Description

The ABB RCCB is a commercial and industrial range circuit breaker designed to provide protection against earth leakage faults. It has a rating of 10kA at 230/400VAC and is a 3P+N type with a current rating of 40A. The RCCB is of Type AP-R and has a sensitivity of 30mA, offering high immunity to electrical disturbances.
