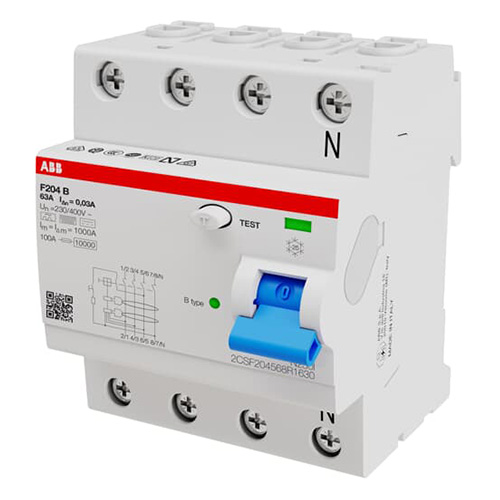

ABB F204B63/0.03 Residual Current Circuit Breaker 4-P 63A 10kA 30mA Type B

Product Code: F204B63/0.03

  • Rated current of 63 A for reliable performance
  • Supports 230-400 VAC with 4 kV impulse withstand
  • Four-pole RCCB with IP20/IP40 protection rating
  • Suitable for DIN rail mounting, Type B residual current
  • Durable up to 10,000 electrical cycles
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 4P
Power Loss (W) 4.5/pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Pollution Degree 2
Rated Current (A) 63
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 230/400
Rated Residual Current (mA) 30
Rated Voltage AC (V) 240/415
Type of Residual Current B
Poles 4P
Current Rating (A) 63
Family F200
AC Voltage (V) 230/400
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Residual Current Circuit Breaker
Brand ABB
Series F200
Ambient Temperature -25 to 50 deg C
Application Commercial and Industrial
Breaking Capacity 30 mA
Cable Cross Section 25 sq-mm
Connecting Capacity Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-25 sq-mm
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Electrical Durability 10000 Cycles
Environmental Condition 28 Cycle with 55 deg C, 90-96% and 25 deg C
Height 85 mm
Housing Material Insulation Group I - II, RAL 7035
Mounting Type DIN Rail
Number of Poles 4
Operating Characteristic Instantaneous
Power Loss 4.8 W
Rated Current 63 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 10 kA
Rated Voltage 230-400 VAC
Residual Current Type Type B
Terminal Type Screw Clamp
Test Voltage 170-253 V
Tightening Torque 2.8 N-m
Weight 380 g
Width 70 mm
Wire Stripping Length 12 mm

Description

The ABB RCCB is a Type B 63A 3P+N circuit breaker designed for commercial and industrial use. It provides protection against earth leakage faults with a sensitivity of 30mA. With a breaking capacity of 10kA at 230/400VAC, this RCCB ensures reliable and efficient electrical safety.
