Specifications

Dimensions (mm)	87W x 93H x 76D
No. of Poles	3
Rated Current (A)	63
Rated Frequency (Hz)	50 - 60
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	4
Rated Residual Current (mA)	30
Ambient Temperature Range (°C)	-25 to 55
Type of Residual Current	Type A
Weight (kg)	0.158
Rated Voltage (V)	230/400
Rated Operational Voltage (V)	230
Standards	IEC/EN 61009 Ann. G

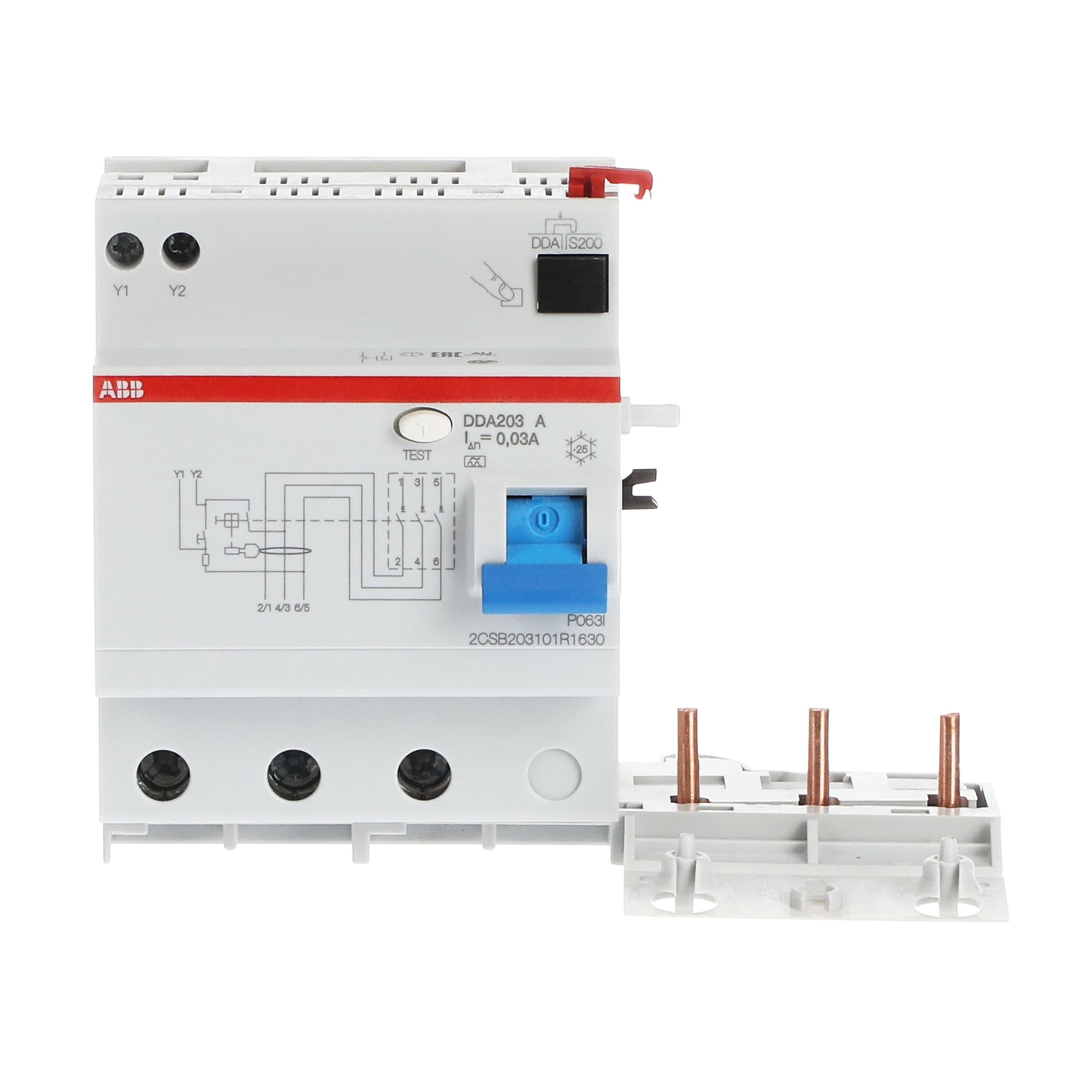

Product Type	Residual Current Device Block
Brand	ABB
Ambient Temperature	-25 to 55 deg C
Cable Cross Section	25-25 sq-mm Rigid/Flexible
Degree of Protection	IP2X
Depth	76 mm
Electrical Durability	10000 Cycles
Height	93 mm
Number of Poles	3
Power Loss	7.6 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Voltage	230/400 VAC
Residual Current Type	Type A
Standards and Approvals	IEC/EN 61009
Weight	0.158 kg
Width	87 mm
