Specifications

Product Type	Switch
Brand	N - Tron
Series	105M
Connection Type	FX Port-ST
Input Voltage	10 - 49 VDC
No. of Ethernet Ports	8
Communication Ports	8 x 10/100 Base-TX RJ-45, 4 x 100 Base-FX
Rated Current	505 mA
Rated Voltage	10-49 VDC
Redundancy	N-Ring Member/Manager(~30 ms Healing), STP, RSTP
Connectors/Input/Output	8x RJ45, 4x ST
Cable Type	FX Single Mode
Housing Material	Metal
Mounting	DIN Rail
Mounting Type	DIN Rail
Depth	117 mm
Height	109 mm
Weight	1.359 Kg
Width	79 mm
Humidity	5-95%
Operating Temperature	-40 °C - 70 °C
IP Rating	IP20
Fiber Distance Rating	15 km
Total Ports	12
Traffic Management	Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management	SNMP V1/2/3
Standards and Approvals	TÜV/GS Certified to EN 60950-1; GOST-R Certified

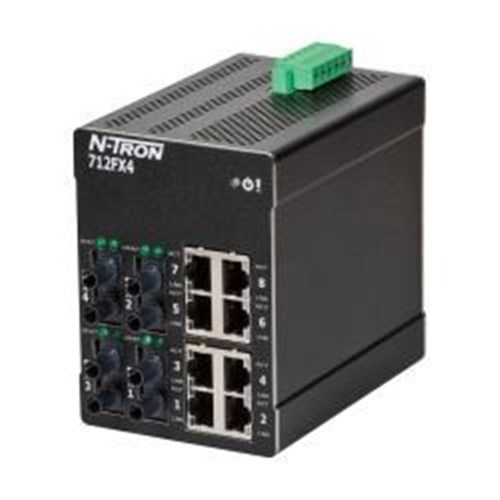

Red Lion 712FXE4-ST-15 Industrial Ethernet Switch 8 x 10/100 Base-TX RJ45 4 x 100 Base-FX -Port 10-49VDC
