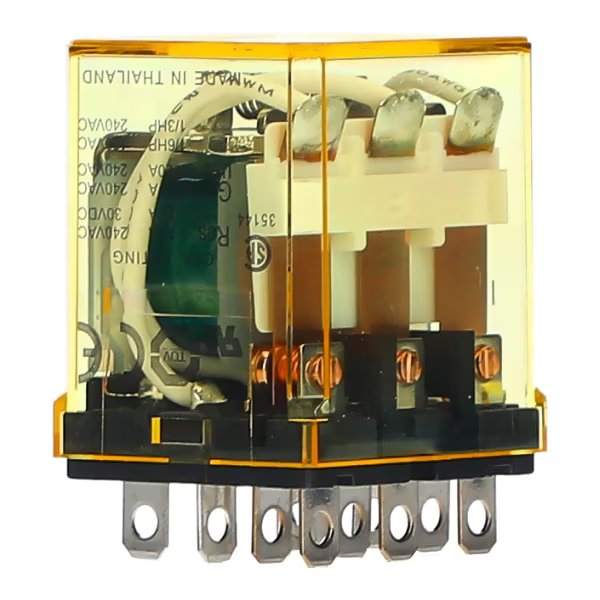

IDEC RH3B-ULCAC240V Power Relay 3PDT 240VAC Coil 10A Blade Terminal

Product Code: RH3B-ULCAC240V

  • 240 VAC, 10 A rated power capacity
  • Durable with 200k electrical operations
  • Quick 25 ms operating time
  • Silver Cadmium Oxide contacts for reliability
  • CE, CSA, EN, UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage AC (V) 240
Insulation Resistance (MO) 100
No. of Poles 3
Power Consumption (W) 1.5
Contacts 3PDT
Weight (g) 50
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 3PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 3
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 240 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA. EN, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 50 g

Description

The IDEC RH3B-ULCAC240V is a compact 3PDT relay with a 10A contact capacity, designed for efficient space utilization. It features an integrated LED and check button for easy status indication and testing. This miniature power relay combines large capacity switching with a compact form factor, making it suitable for a variety of applications where space is at a premium.
