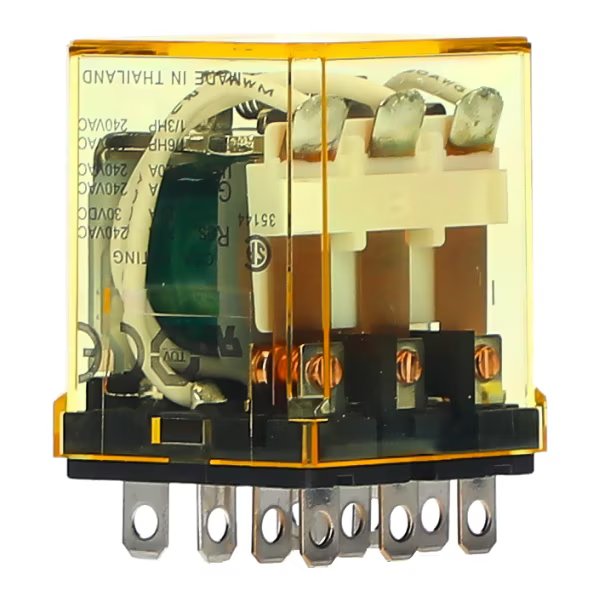

IDEC RH3B-ULAC120 Power Relay 3PDT 120VAC Coil 10A Blade Terminal

Product Code: RH3B-ULAC120

  • 120 VAC, 10 A rated for reliable performance
  • Durable with 200,000 electrical operations
  • Fast operation time of just 25 ms
  • Silver Cadmium Oxide contacts for longevity
  • Meets CE, CSA, EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3PDT
Coil Voltage AC (V) 120
Insulation Resistance (MO) 100
No. of Poles 3
Power Consumption (W) 1.5
Weight (g) 50
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 3PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 3
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 120 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA. EN, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 50 g

Description

The IDEC RH3B-ULAC120 is a 3PDT relay designed for efficient operation in power applications. It features a 10A contact capacity and an integrated indicator for easy status monitoring. The compact design of this miniature power relay allows for space-saving installation without sacrificing performance. Ideal for various industrial applications, it operates at 120V AC and ensures reliable switching with its large capacity contacts.
