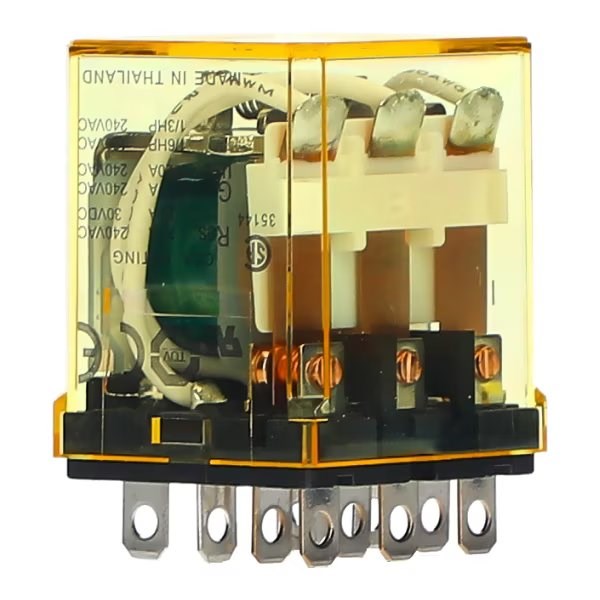

IDEC RH3B-ULAC12 Power Relay 3PDT 12VAC Coil 10A Blade Terminal

Product Code: RH3B-ULAC12

  • 12 VAC, 10 A rated for reliable performance
  • Durable 3PDT contact configuration
  • Silver Cadmium Oxide contacts enhance conductivity
  • Long electrical life of 200,000 operations
  • CE, CSA, EN, UL certified for safety compliance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage AC (V) 12
Insulation Resistance (MO) 100
No. of Poles 3
Power Consumption (W) 1.5
Contacts 3PDT
Weight (g) 50
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 3PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 3
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 12 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA. EN, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 50 g

Description

The IDEC RH3B-ULAC12 is a compact 3PDT relay with a 12V AC coil and an integrated indicator. It offers a high contact capacity of 10A within its miniature frame, ensuring efficient use of space without compromising on power. Ideal for applications requiring reliable switching capabilities in tight spaces.
