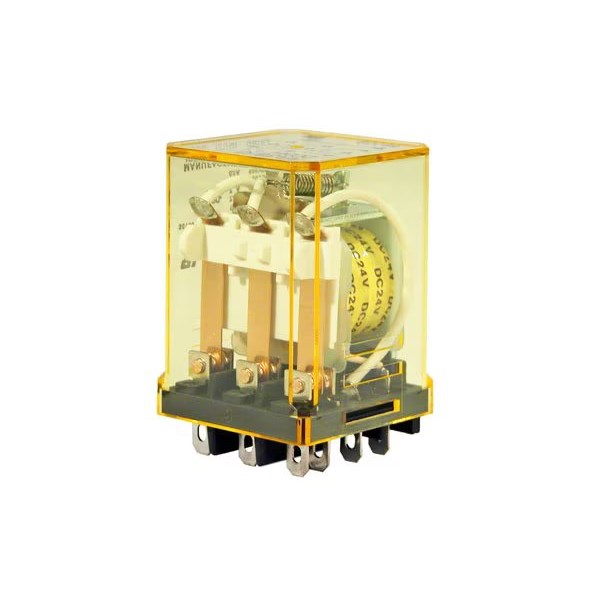

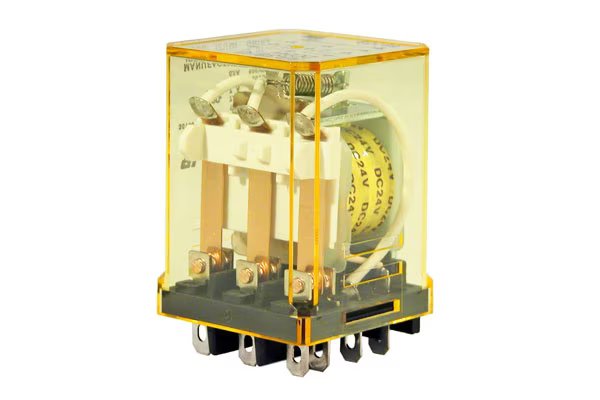

For professionals in the electrical engineering and automation sectors, selecting the right component is crucial for ensuring system reliability and efficiency. The power relay described here is a robust choice, offering a balance of performance and durability suitable for various industrial applications.
This relay operates at a rated voltage of 240 VAC with a rated current of 10 A, making it versatile enough to handle most standard power requirements. Its contact configuration is 3PDT (Triple Pole Double Throw), providing flexibility in circuit design and enabling complex switching tasks.
The relay's blade terminal type ensures easy integration into existing systems, promoting quick installations or replacements without specialized tools. With an operating time of just 25 milliseconds, this device provides swift response times, critical for applications where timing precision is key.
Constructed with silver contacts, the relay offers excellent conductivity and minimizes energy loss. This results in enhanced performance and longevity under regular use conditions. It boasts an impressive electrical life of up to 200,000 operations and an even more remarkable mechanical life reaching up to 10 million operations.
From an insulation standpoint, the device maintains a resistance of 100 MOhm—ensuring safety against electrical leakage—and exhibits low contact resistance at just 30 MOhm. These features contribute significantly to its reliable operation over time.
In terms of resilience against environmental factors, this relay can withstand shock durations up to 100 ms and vibration frequencies ranging from 10-55 Hz. Such robustness makes it ideal for environments subject to mechanical stress or movement.
The operational temperature range spans from -25°C to +40°C while maintaining functionality across humidity levels between 5% and 85%. This adaptability ensures that the relay performs consistently under varied climatic conditions typical in many industrial settings.
Adhering to CE and CSA standards guarantees compliance with international safety regulations—a testament to its quality manufacturing processes. Weighing only 82 grams, it adds minimal load while maximizing utility within your setup.
Overall, this power relay combines essential features such as rapid operation time, durable construction materials like silver contacts, extensive lifespan capabilities both electrically and mechanically—all packed within a compact form factor designed for ease-of-use across multiple applications.
