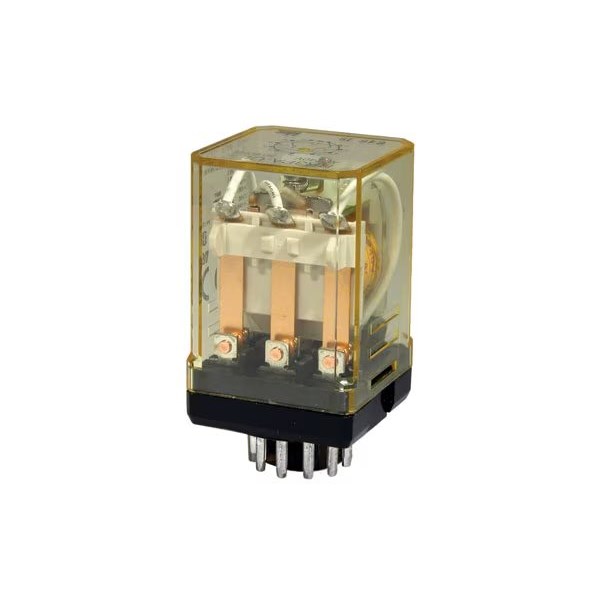

When selecting a power relay for your industrial or commercial applications, it's crucial to focus on specifications that align with your technical requirements. This power relay offers a robust solution with its 48 VDC rated voltage and 10 A rated current, making it suitable for various demanding environments.
The relay features a 3PDT (Triple Pole Double Throw) contact configuration, which provides versatility in switching multiple circuits simultaneously. With 11 pins and pin terminal types, this component ensures secure connections in complex setups.
Designed for efficiency and reliability, the relay boasts an operating time of just 25 ms. The contacts are made from silver, known for excellent conductivity and durability. In terms of longevity, this product delivers an impressive electrical life of up to 200,000 operations and an extraordinary mechanical life reaching up to 10 million operations.
For those concerned about insulation performance, the relay offers an insulation resistance of 100 MOhm. It is also built to withstand harsh conditions with shock resistance of up to 100 ms and vibration resistance ranging from 10-55 Hz.
Environmental factors such as humidity and temperature are well accounted for; the relay operates efficiently within a humidity range of 5-85% and can function in temperatures spanning from -25°C to +40°C. This makes it adaptable across diverse climates found throughout Australia.
Safety standards are not overlooked—this product holds both CE and CSA approvals, ensuring compliance with international safety regulations.
Weighing only 96 grams, this power relay combines lightweight design with high performance. Overall, its blend of technical capabilities positions it as a reliable choice for professionals seeking dependable operation in their systems without compromise on quality or safety standards.
