Product Code: RH2B-ULCAC12V

12 VAC, 10 A rated for efficient power handling
Durable DPDT blade terminal configuration
Silver cadmium oxide contacts for reliability
High electrical life with 200k operations
CE, CSA, RoHS approved for safety compliance

Specifications

Contacts	DPDT
Coil Voltage AC (V)	12
Insulation Resistance (MO)	100
No. of Poles	2
Power Consumption (W)	0.9
Contact Resistance (mO)	50
Weight (g)	37
Minimum Mechanical Life	50,000,000
Operating Humidity	45 to 85%
Minimum Electrical Life	200,000
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	Blade Terminal
Product Type	Power Relay
Brand	IDEC
Contact Configuration	DPDT
Contact Material	Silver Cadmium Oxide
Contact Resistance	50 MOhm
Electrical Life	200000 Operations
Humidity	45-85%
Insulation Resistance	100 MOhm
Mechanical Life	50000000 Operations
Number of Poles	2
Operating Time	20 ms
Rated Current	10 A
Rated Power	0.9 W
Rated Voltage	12 VAC
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA, RoHS
Terminal Type	Blade
Vibration Resistance	10-55 Hz
Weight	37 g

Description

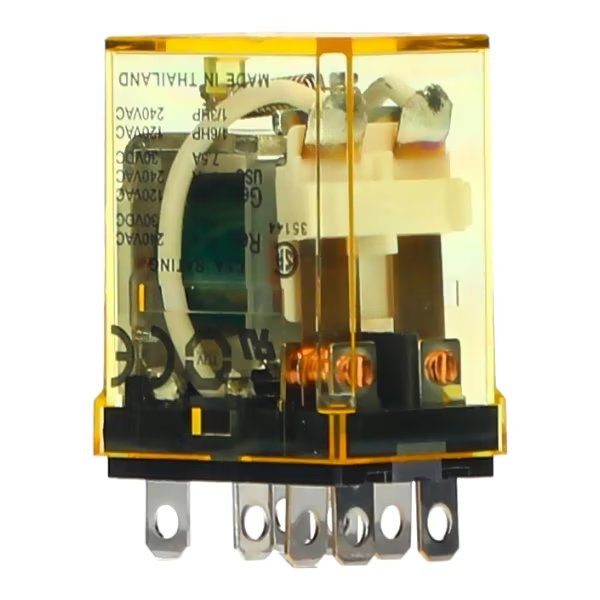

The IDEC RH2B-ULCAC12V is a compact, high-capacity DPDT relay with a 10A contact capacity. It features an integrated LED and check button for easy status indication and testing. Its miniature size allows for efficient space utilization in control panels. This power relay is designed to facilitate reliable switching operations in various applications.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

IDEC RH2B-ULCAC12V Power Relay DPDT 12VAC Coil 10A Blade Terminal
