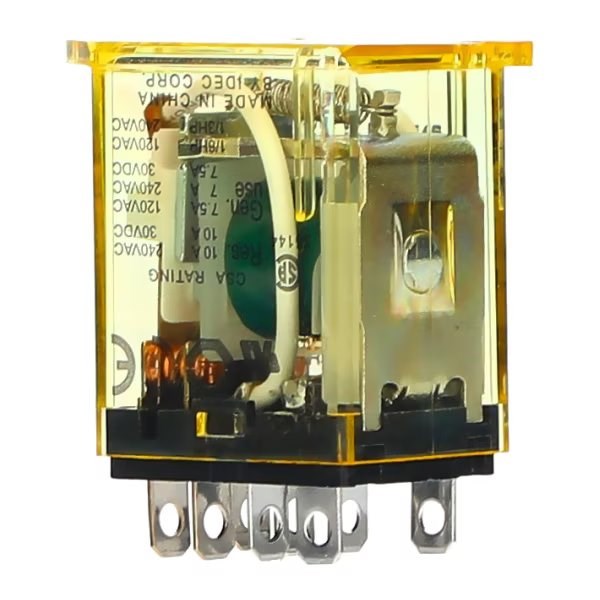

IDEC RH2B-UTDC12V Power Relay DPDT 12VDC Coil 10A Blade Terminal

Product Code: RH2B-UTDC12V

  • Rated for 12 VDC, 10 A operation
  • Durable with 200k electrical ops
  • Silver Cadmium Oxide contacts
  • CE, CSA, RoHS certified
  • Quick 20 ms operating time
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 12
Contacts DPDT
Insulation Resistance (MO) 100
No. of Poles 2
Power Consumption (W) 0.9
Weight (g) 37
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 2
Operating Time 20 ms
Rated Current 10 A
Rated Power 0.9 W
Rated Voltage 12 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, RoHS
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 37 g

Description

The IDEC RH2B-UTDC12V is a compact, high-capacity DPDT relay designed for efficient space utilization. It operates on 12V DC and can handle up to 10A of current. The top bracket mounting facilitates easy installation, making it suitable for various applications where space is at a premium and power relay performance is required.
