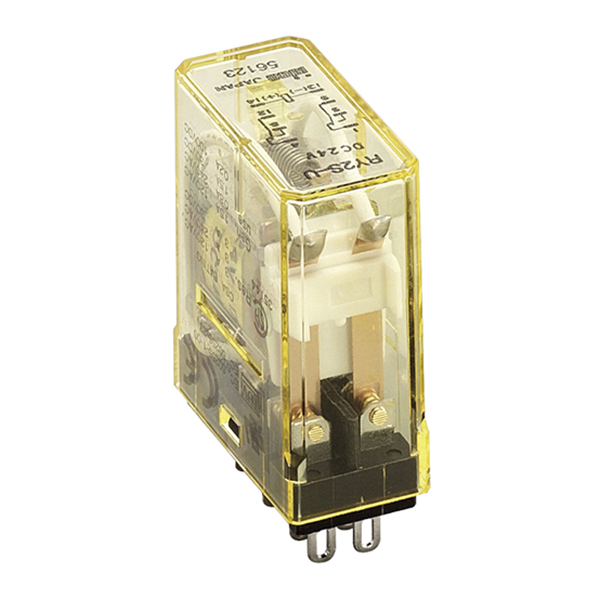

IDEC RY2S-ULDC24 Miniature Relay DPDT 3A Plug-In Terminal

Product Code: RY2S-ULDC24

  • Rated Current: 3A
  • Coil Voltage: 24VDC
  • DPDT Contact Configuration
  • Gold Plated Silver Contacts
  • CE, cRuus, CSA Approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 24
Insulation Resistance (MO) 100
Operational Temperature Range (°C) -25 to +55
Rated Continuous Current (A) 3
Weight (kg) 0.023
Type General purpose miniature
Product Type Miniature Relay
Brand IDEC
Series RY2S
Coil Voltage 24 VDC
Contact Configuration DPDT
Contact Material Gold Plated Silver
Insulation Resistance 100 MOhm
Model With Indicator
Operational Temperature -25 to 55 deg C
Rated Current 3 A
Standards and Approvals CE, cRuus, CSA
Terminal Type Plug-In
Weight 0.023 kg

Description

The IDEC RY2S-ULDC24 is a DPDT relay with a 3A current rating and operates on a 24VDC power supply. It includes an indicator for easy status verification. Designed for reliability, this relay ensures efficient switching in various applications.
