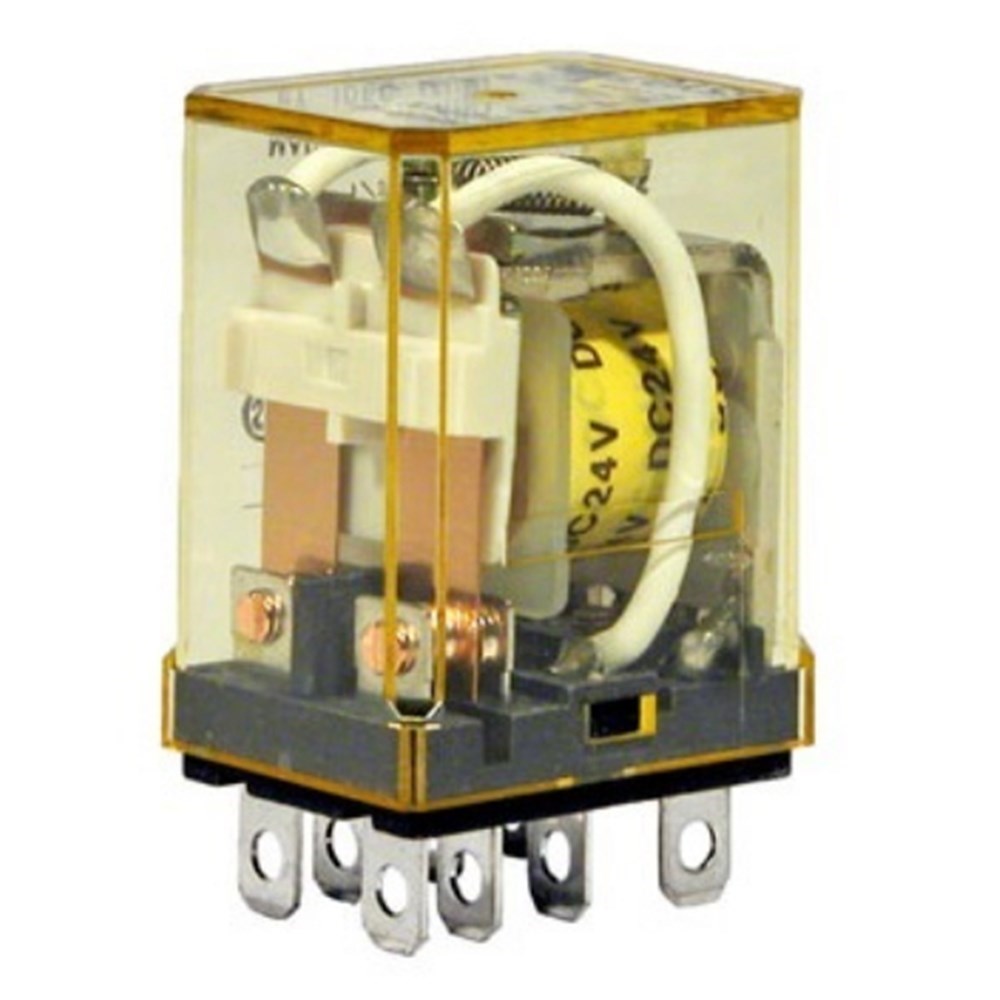

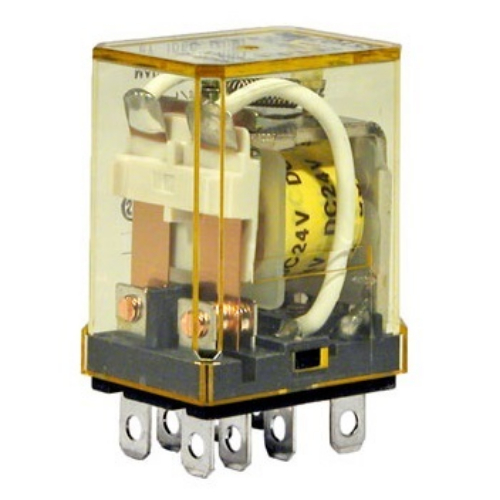

IDEC RH2B-UD-DC48 Power Relay DPDT 48VDC Coil 10A Blade Terminal

Product Code: RH2B-UD-DC48

  • Rated for 48 VDC, 10 A
  • DPDT contact configuration
  • Quick 20 ms operating time
  • Durable silver cadmium oxide contacts
  • CE, CSA, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 48
Insulation Resistance (MO) 100
No. of Poles 2P
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Weight (g) 37
Minimum Mechanical Life 50,000,000 operations
Operating Humidity 45 to 85% RH (no condensation)
Suitable Base SH2B-05C
Minimum Electrical Life 200,000 operations
Product Type Power Relay
Brand IDEC
Series RH
Base Type SH2B-05C
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Operating Time 20 ms
Operational Temperature -25 to 40 deg C
Rated Current 10 A
Rated Voltage 48 VDC
Relay Type RH2 2PDT Relay with diode
Standards and Approvals CE, CSA, RoHS
Terminal Type Blade
Weight 37 g

Description

The IDEC RH2B-UD-DC48 is a compact power relay from the RH2 Series, featuring a DPDT configuration with a 48VDC coil voltage and a 10A switching current. It includes blade-style terminals and an integrated diode for circuit protection. This relay offers high switching capacity within its space-saving design, making it suitable for various applications requiring reliable power management.
