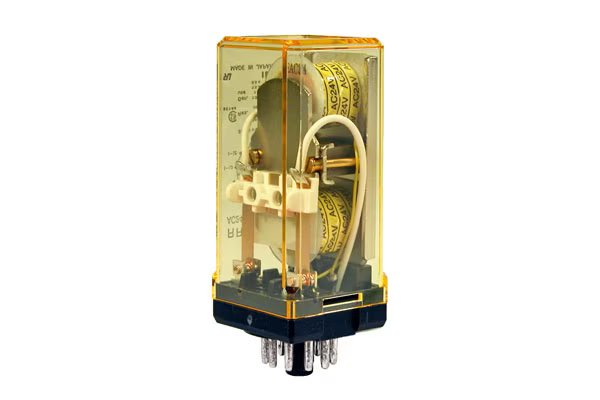

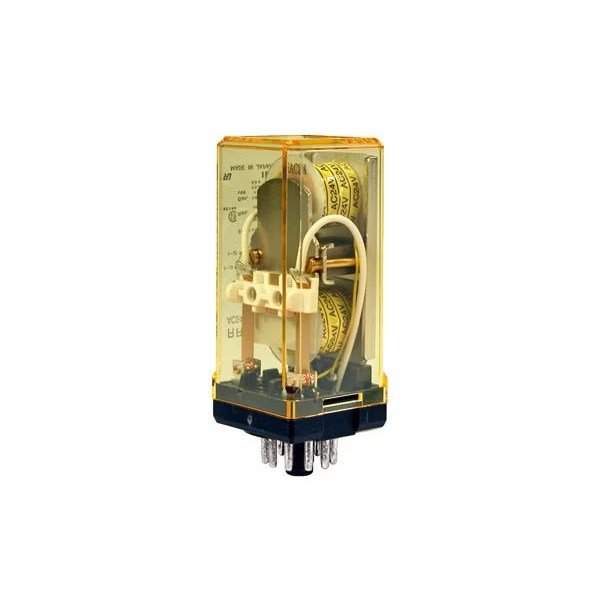

When it comes to selecting a reliable latching relay for industrial and commercial applications, understanding the technical specifications is key. This product offers a robust set of features tailored to meet demanding operational requirements.
Designed with a rated current of 10 A, this latching relay efficiently handles moderate electrical loads. It operates at coil voltages of 120 VAC, making it suitable for various standard applications. The dual power ratings of 2.4 VA and 2.2 VA ensure that energy consumption is managed effectively without compromising performance.
The contact configuration is DPDT (Double Pole Double Throw), providing flexibility in switching operations by allowing two independent circuits to be controlled simultaneously. With 11 pins available, installation and integration into existing systems are straightforward via pin terminals.
This relay's silver contact material ensures excellent conductivity and durability, supporting an impressive electrical life of up to 500,000 operations and a mechanical life reaching up to five million operations. Such longevity makes it an ideal choice for environments where reliability over time is critical.
In terms of resistance capabilities, the contact resistance stands at just 30 mOhm, minimizing potential losses during operation. The unit can withstand shocks up to 100 ms and vibrations ranging from 5-55 Hz, showcasing its resilience in dynamic conditions.
Operating within a humidity range of 45-85% and temperatures from -25°C to +40°C, this latching relay performs reliably across varied environmental conditions typical in industrial settings.
Safety compliance is assured with CSA and UL standards approvals, giving you peace of mind regarding adherence to industry regulations.
Weighing in at just 170 g, this component offers substantial functionality without adding significant weight—ideal for space-constrained installations or portable applications requiring efficient load management solutions while maintaining structural integrity under operational stresses.
Overall, these specifications highlight the product’s suitability for professionals seeking dependable performance combined with ease of use in their automation or building projects.
