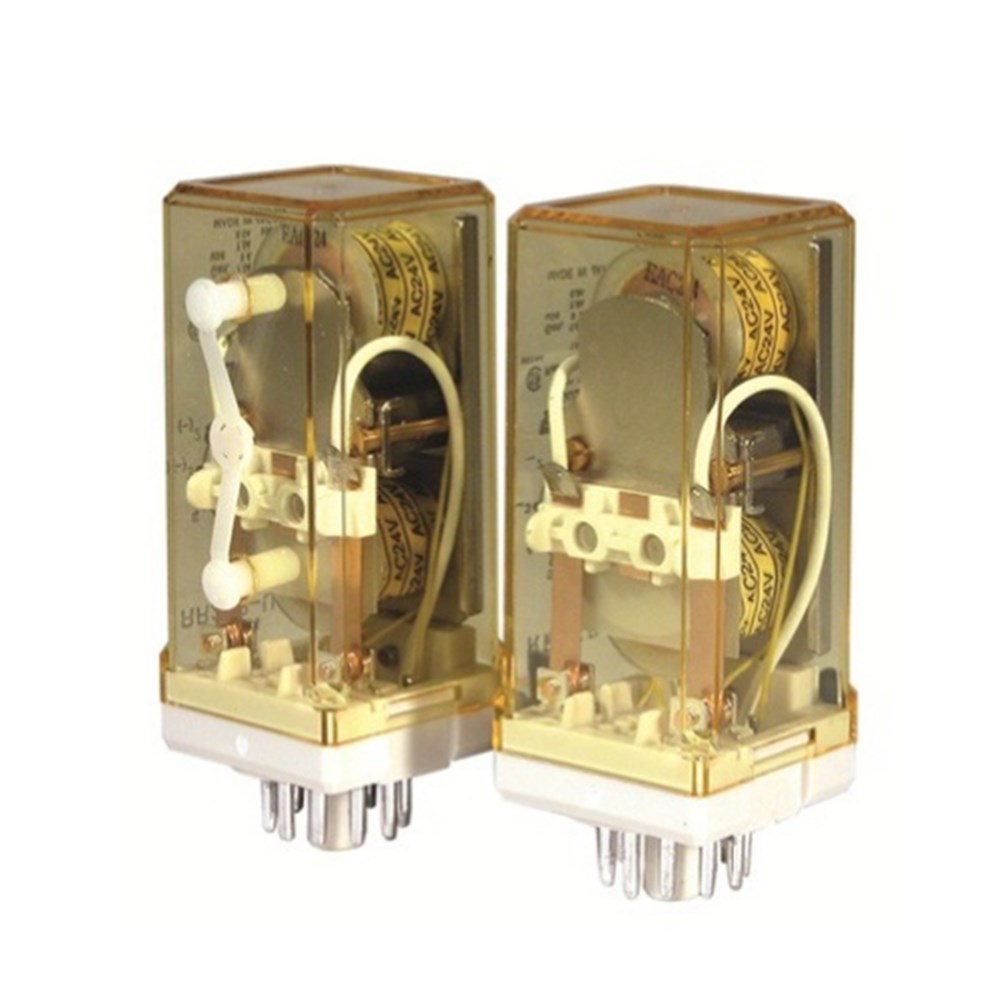

IDEC RR2KP-UDC12 RELAY LATCHING DPDT 12VDC 10A

Product Code: RR2KP-UDC12

The IDEC RR2KP-UDC12 is a self-maintained latching relay from the RR Series, featuring a DPDT configuration and a 12VDC coil voltage. It supports a switching current of up to 10A across its two poles, providing robust performance for various applications. This relay is designed for reliability and long-term use in demanding environments.

Technical Specifications

Brand IDEC
Series RR
Operational Temperature Range (°C) -5 to +40
Coil Voltage DC (V) 12
Contact Configuration DPDT
Contact Material Silver
Insulation Resistance (MO) 100
No. of Poles 2P
Rated Current (A) 10
Relay Type RR2KP DPDT Relay
Terminal Type Pin
