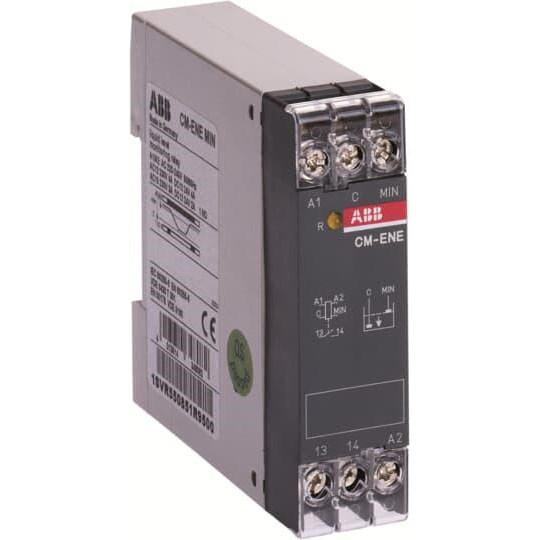

ABB CM-ENE.MIN.230 Liquid Level Relay 0-100kOhm 220-240VAC 2-Electrode 1NO 4A

Product Code: CM-ENE.MIN.230

  • Measures resistance from 0 to 100 kOhm
  • Operates on 220-240 VAC, 4 A current
  • Fits on DIN rails: 35 x 15 mm or 35 x 7.5 mm
  • IP20/IP50 protection rating
  • Functions in -20 to +60°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Operational Temperature Range (°C) -20 to +60
Pollution Degree 3
Rated Control Supply Voltage AC (V) 220-240
Rated Frequency (Hz) 50/60
Short-Circuit Protective Device O/P Circuit NO - F Type Fuses 10 A
Duty Time 100%
No. of Electrodes 2
Measuring Range (Kilo Ohm) 0 - 100
Product Type Liquid Level Relay
Brand ABB
Contact Configuration 1NO
Contact Form 1NO
Degree of Protection IP20, IP50
Function Draining Monitoring
Height 78 mm
LED Colour R: Yellow
Measuring Range 0-100 kOhm
Mounting Type 35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Operational Temperature -20 to 60 deg C
Output Type 1NO
Overvoltage Category III
Rated Current 4 A
Rated Frequency 50/60 Hz
Rated Voltage 220-240 VAC
Standards and Approvals CAN/CSA C22.2 No.14,IEC/EN 63000,IEC/EN 61000-6-2,IEC/EN 61000-6-3,UL 508
Terminal Type Screw
Weight 0.106 kg
Width 22.5 mm

Description

The Liquid Level Relay is a versatile device that provides draining monitoring and dry running protection. It is designed to measure liquid levels within a range of 0 to 100 kohm using two fixed electrodes. The relay operates with a rated control supply voltage of 220-240 V AC and features a 1NO output. It is equipped with screw terminals for easy installation and connection.
