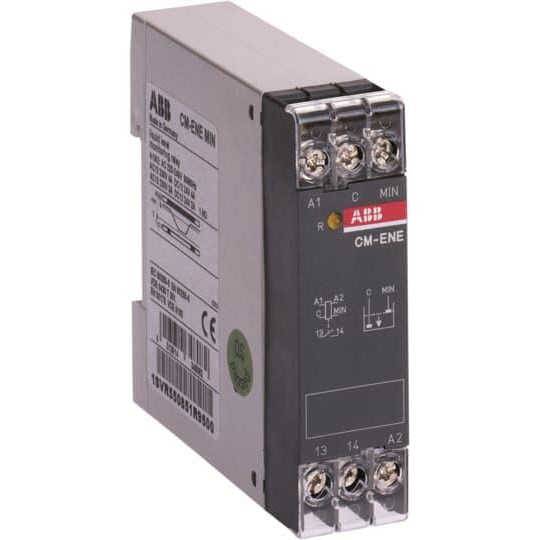

ABB CM-ENE.MIN.24 LIQUID LEVEL RELAY 0-100 kΩ 2 ELECTRODES CONTROL 24VAC 1NO

Product Code: CM-ENE.MIN.24

Liquid level relay with draining monitoring and dry running protection. This relay has a measuring range of 0 to 100 kohm using fixed 2 electrodes. It operates with a rated control supply voltage of 24 V AC and features a 1NO output. The relay is equipped with screw terminals for easy installation.

Technical Specifications

Brand ABB
Contacts 1NO
Degree of Protection IP50 (Housing), IP20 (Terminals)
Duty Time 100%
Function Draining monitoring
LED Colour R: Yellow
Measuring Range (Kilo Ohm) 0 - 100
Mounting Type DIN Rail
No. of Electrodes 2
Operational Temperature Range (°C) -20 to +60
Overvoltage Category III
Pollution Degree 3
Rated Control Supply Voltage AC (V) 24
Rated Frequency (Hz) 50/60
Short-Circuit Protective Device O/P Circuit NO - F Type Fuses 10 A
Terminal Type Screw
