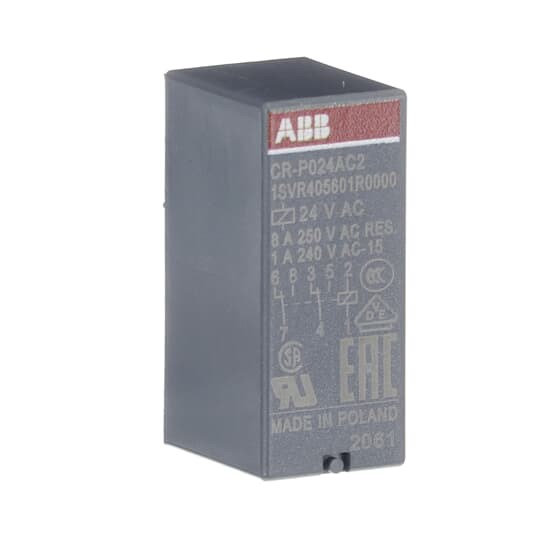

When selecting a relay for your industrial or commercial applications, you need reliable performance and adherence to stringent standards. The Pluggable PCB Interface Relay CR-P offers just that, with specifications designed to meet demanding environments while ensuring efficient operation.
This relay operates at a rated voltage of 24 VAC and can handle a current of up to 8 A. It supports both 50 Hz and 60 Hz frequencies, making it versatile for various electrical systems. The contact form is a 2CO SPDT (Single Pole Double Throw), providing flexibility in switching operations. This configuration allows the relay to control two circuits, which is beneficial in complex setups where multiple connections are needed.
With its solder terminal type, this relay ensures secure connections on printed circuit boards (PCBs), enhancing reliability in long-term use. Measuring at a width of 12.7 mm and height of 15.7 mm, it is compact enough to fit into tight spaces without compromising performance.
The output type mirrors the contact form as a 2CO SPDT, maintaining consistency across its design features. This uniformity simplifies integration into existing systems by reducing compatibility concerns.
One standout feature is its robust degree of protection rated at IP67. This means the relay is dust-tight and protected against temporary immersion in water up to one meter deep for about half an hour – ideal for harsh environments where moisture or dust could be an issue.
Operational temperature ranges from -40°C to +70°C, illustrating its resilience under extreme conditions whether it's freezing cold or sweltering heat.
Compliance with IEC/EN 61810-1 standards underscores the product's quality assurance and safety credentials, reassuring users that it meets global benchmarks for relays used in industrial applications.
Weighing only 0.014 kg, this lightweight component won't add unnecessary bulk to your equipment setup but still packs all necessary features within its small frame.
Overall, the Pluggable PCB Interface Relay CR-P combines practicality with performance efficiency suitable for diverse technical needs across industries requiring dependable switching solutions under challenging conditions.
