Specifications

Product Type	Pluggable Interface Relay
Brand	ABB
Contact Configuration	2CO SPDT
Degree of Protection	IP40

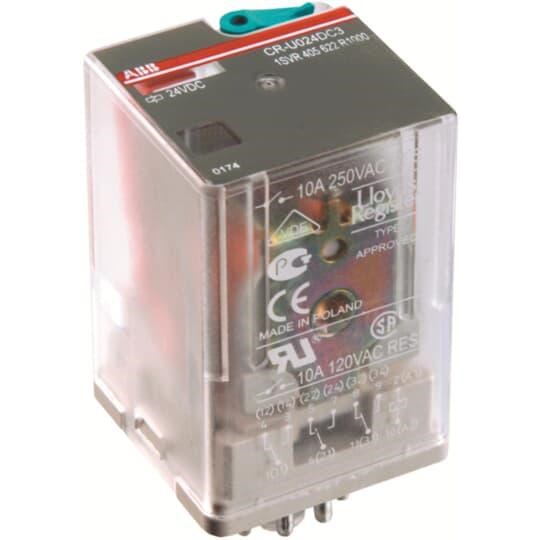

Function	Pluggable Universal Interface Relay CR-U
Height	54.4 mm
Insulated Voltage	250 V
Length	35 mm
Operational Temperature	-40 to 70 deg C
Rated Current	10 A
Rated Voltage	24 VDC
Standards and Approvals	CAN/CSA C22.2 No.14,IEC/EN 63000,IEC/EN 61810-1,UL 508
Terminal Type	Pin
Weight	0.083 kg
Width	35 mm
