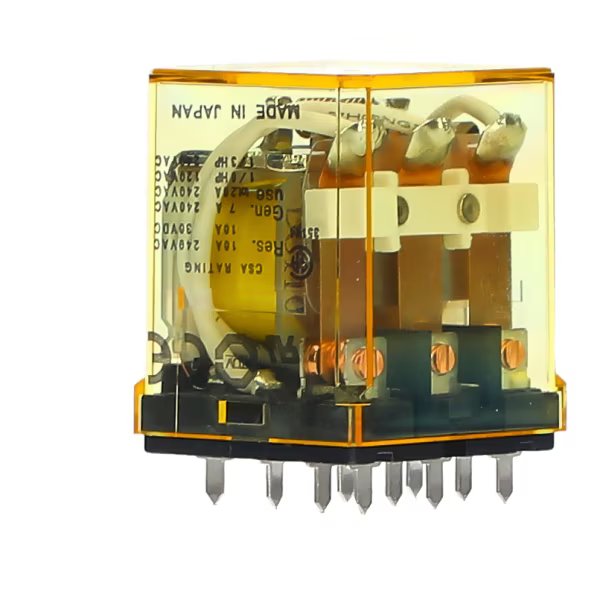

IDEC RH3V2-ULDC24V Power Relay 3PDT 24VDC Coil 10A PCB Terminal

Product Code: RH3V2-ULDC24V

  • 24 VDC, 10 A rated power capacity
  • Durable silver cadmium oxide contacts
  • Long electrical life: 200k operations
  • Compact PCB terminal design
  • CE, cRuus, CSA certified for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 24
Contacts 3PDT
Insulation Resistance (MO) 100
No. of Poles 3
Power Consumption (W) 1.5
Weight (g) 50
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 3PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 3
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 24 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuus, CSA
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 50 g

Description

The IDEC RH3V2-ULDC24V is a compact 3PDT power relay with an integrated LED indicator. It offers a high contact capacity of 10A within its miniature frame, ensuring efficient space utilization on PCBs. This relay is designed for robust performance in various applications requiring reliable switching capabilities.
