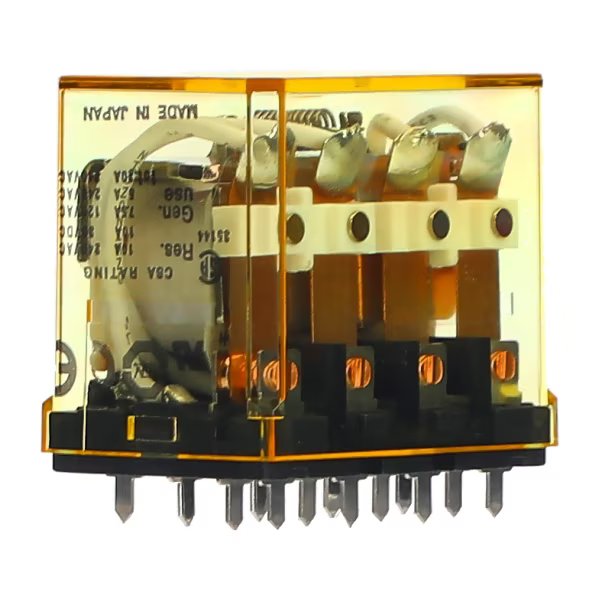

IDEC RH4V2-UDC12V Power Relay 4PDT 12VDC Coil 10A PCB Terminal

Product Code: RH4V2-UDC12V

  • 12 VDC power with 10 A current rating
  • Durable 4PDT contact configuration
  • Silver Cadmium Oxide contacts for reliability
  • Long electrical life: 200,000 operations
  • CE, cRuus, CSA certified for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 12
Contacts 4PDT
Insulation Resistance (MO) 100
No. of Poles 4
Power Consumption (W) 1.5
Weight (g) 74
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 4PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 4
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 12 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuus, CSA
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 74 g

Description

The IDEC RH4V2-UDC12V is a compact, high-capacity 4PDT relay suitable for PCB applications. It offers a 10A contact capacity within a space-saving design, ideal for power-dense configurations. This miniature relay ensures reliable switching for various electrical circuits with its 12V DC coil voltage.
