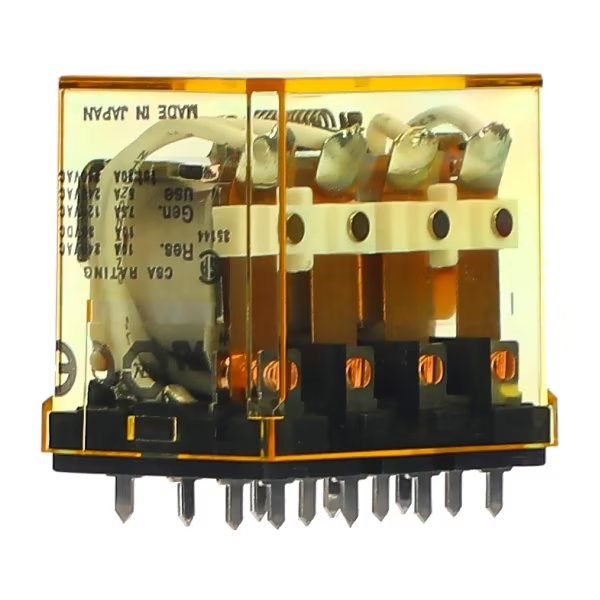

When considering reliable components for your industrial or commercial projects, this power relay stands out with its robust specifications. Designed to handle a rated voltage of 48 VDC and a rated current of 10 A, it provides dependable performance across various applications. With a modest rated power of 1.5 W, this relay ensures efficient energy use without compromising on functionality.
The contact configuration is 4PDT (four-pole double-throw), offering versatility in switching capabilities, ideal for complex circuit requirements. Its PCB terminal type simplifies installation and integration into printed circuit boards, making it user-friendly for engineers and technicians.
One of the standout features is its quick operating time of just 25 ms, ensuring prompt response in fast-paced environments. The contacts are made from silver cadmium oxide, known for their excellent conductivity and durability under high electrical loads.
This relay boasts an impressive electrical life span of up to 200,000 operations and an exceptional mechanical life reaching up to 50 million operations. Such longevity makes it a cost-effective choice over time by reducing the need for frequent replacements.
The insulation resistance is rated at 100 MOhm, which helps prevent leakage currents and maintains safety standards during operation. Contact resistance sits at a low 50 MOhm, ensuring minimal energy loss across connections.
With shock resistance rated at 1000 ms and vibration resistance between 10-55 Hz, this relay can withstand challenging environmental conditions without affecting performance. It operates effectively within humidity levels ranging from 45% to 85%, adding another layer of reliability in diverse settings.
In terms of compliance, this product meets CE standards along with cRuus and CSA approvals—providing assurance that it adheres to international safety and quality benchmarks.
Weighing only 74 g, it's lightweight yet sturdy enough to be integrated into your systems without adding unnecessary bulk or weight constraints.
Overall, these specifications make this power relay an excellent choice for those seeking durability combined with efficiency in their electrical engineering projects.
