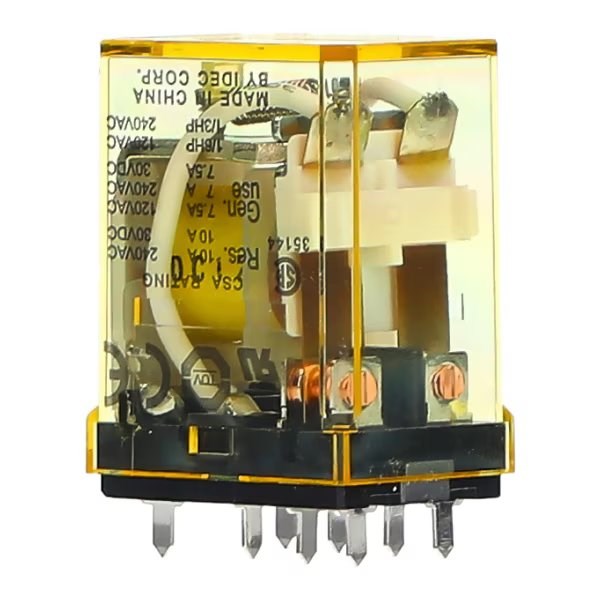

IDEC RH2V2-UDC12V Power Relay DPDT 12VDC Coil 10A PCB Terminal

Product Code: RH2V2-UDC12V

  • 12 VDC, 10 A rated power relay
  • DPDT contact configuration
  • Silver Cadmium Oxide contacts
  • Long electrical life: 200,000 ops
  • CE, CSA, EN, UL approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 2
Power Consumption (W) 0.9
Coil Voltage DC (V) 12
Contacts DPDT
Weight (g) 37
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 2
Operating Time 20 ms
Rated Current 10 A
Rated Power 0.9 W
Rated Voltage 12 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, EN, UL
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 37 g

Description

The IDEC RH2V2-UDC12V is a compact, high-capacity DPDT relay suitable for PCB applications. It offers a 10A contact capacity within its miniature frame, ensuring efficient use of space without compromising power. This basic relay is designed to facilitate streamlined integration into various electrical systems.
