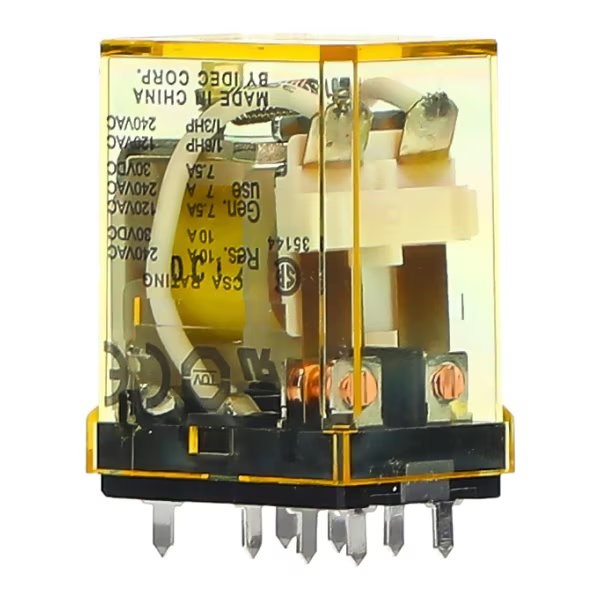

IDEC RH2V2-ULDC48V Power Relay DPDT 48VDC Coil 10A PCB Terminal

Product Code: RH2V2-ULDC48V

  • 48 VDC, 10 A rated for reliable power
  • DPDT contact configuration with PCB terminals
  • Durable silver cadmium oxide contacts
  • Long electrical life of 200,000 operations
  • CE, CSA, EN, UL approved for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 48
Contacts DPDT
Insulation Resistance (MO) 100
No. of Poles 2
Power Consumption (W) 0.9
Weight (g) 37
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 2
Operating Time 20 ms
Rated Current 10 A
Rated Power 0.9 W
Rated Voltage 48 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, EN, UL
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 37 g

Description

The IDEC RH2V2-ULDC48V is a compact, high-capacity DPDT relay with an integrated LED indicator. It offers a 10A contact capacity within its miniature frame, ensuring efficient use of PCB space. This power relay is designed for reliable switching in various applications where space and power are at a premium.
