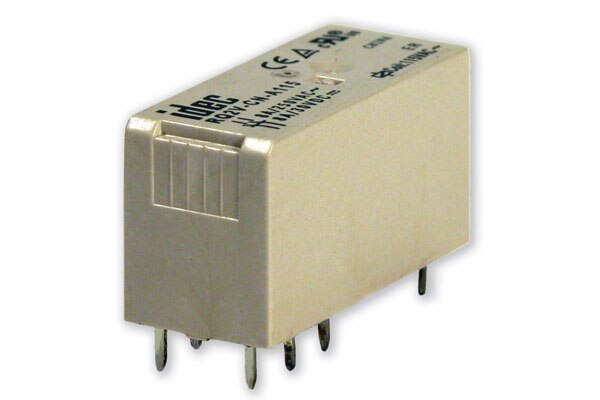

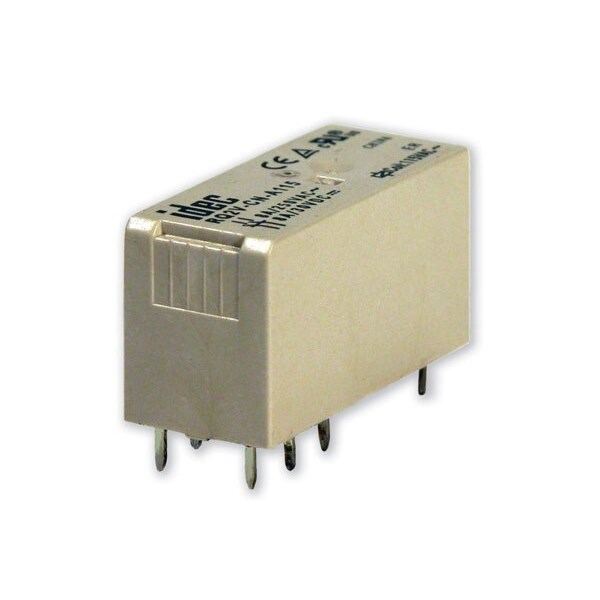

When selecting a Printed Circuit Board (PCB) relay for industrial or commercial applications, it's essential to consider a product that balances performance and reliability. This PCB relay is engineered with precision to meet demanding requirements while ensuring seamless integration into your systems.
Rated for a current of 8 A, this relay is designed to handle moderate electrical loads efficiently. The coil operates at 24 VAC, providing compatibility with standard control voltages used in various automation and building systems. Its Double Pole Double Throw (DPDT) contact configuration offers versatile switching capabilities, making it suitable for diverse applications where multiple circuit paths are necessary.
Measuring just 12.7 mm in width, 29 mm in height, and 15 mm in depth, the compact dimensions of this relay allow for easy incorporation into space-constrained environments without sacrificing functionality or performance. Despite its small size, the unit boasts an impressive mechanical life expectancy of up to 10 million operations and an electrical life of approximately 100,000 operations—ensuring long-term durability and reduced maintenance downtime.
The contacts are crafted from silver nickel alloy which enhances conductivity and minimizes resistance; this results in a contact resistance of only 100 mOhm. Such low resistance ensures efficient power transfer across connections while maintaining high operational efficiency over time.
Designed to withstand challenging conditions, this PCB relay can operate effectively within a wide temperature range from -40°C to +85°C. It also maintains optimal performance under humidity levels ranging from 45% to 85%. With vibration resistance between frequencies of 10-55 Hz, it is well-suited for environments where mechanical stability is crucial.
Compliance with international standards such as CE marking along with cRuUS and UL Recognized File E59804 certifications assures users of its safety credentials and quality assurance during operation within regulated industries.
Weighing only 15 grams, it adds minimal load on supporting structures or components within your system architecture—a vital consideration when optimizing weight distribution across complex installations.
In summary, this PCB relay offers robust performance characteristics that cater well to the needs of professionals seeking reliable solutions without compromising on technical specifications or regulatory compliance.
