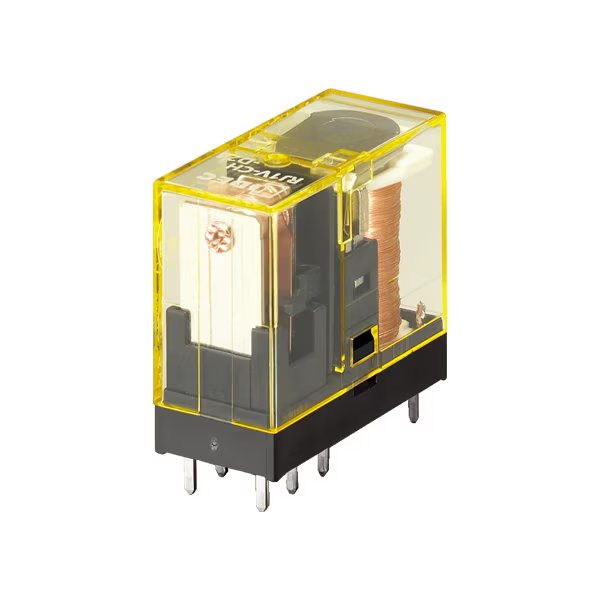

IDEC RJ2V-A-A240 Slim General Purpose Relay DPDT 8A PCB Terminal

Product Code: RJ2V-A-A240

  • Slim Line design with DPDT configuration
  • Rated for 8 A current at 240 VAC coil voltage
  • High durability: 200k electrical/30M mech. ops
  • Operates in wide temp range: -40 to 70°C
  • CE, UL, RoHS, VDE certified for safety and quality
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts DPDT-NO
Coil Voltage AC (V) 240
Dimensions (mm) 29W x 25.5H x 13D
No. of Poles 2
Operational Temperature Range (°C) -40 to 70
Weight (g) 16
Minimum Mechanical Life 30,000,000
Operating Humidity 5 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Contact Resistance (mO) 50
Product Type Slim General Purpose Relay
Brand IDEC
Coil Voltage 240 VAC
Contact Configuration DPDT
Contact Material Silver Nickel Alloy
Contact Resistance 50 MOhm
Degree of Protection IP40
Electrical Life 200000 Operations
Humidity 5-85%
Mechanical Life 30000000 Operations
Model Standard
Number of Poles 2
Operating Time 15 ms
Operational Temperature -40 to 70 deg C
Rated Current 8 A
Shock Resistance 1000 ms
Standards and Approvals CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type PCB
Vibration Resistance 10-55 Hz
Weight 16 g

Description

The IDEC RJ2V-A-A240 is a robust PCB power relay designed for high-capacity switching. This DPST-NO relay can handle up to 8A at 240V AC, ensuring reliable operation in demanding applications. It is environmentally conscious, free from hazardous substances such as lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. For added assurance of quality and safety, it is UL recognized, CSA certified, and EN compliant.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
