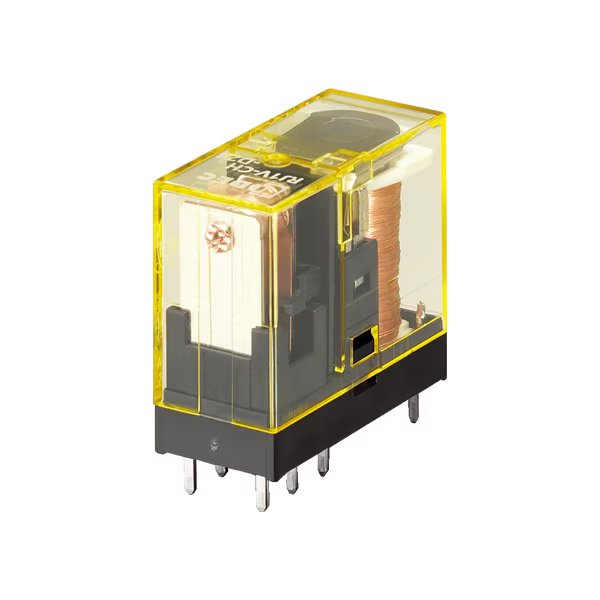

IDEC RELAY PCB DPST-NO 8A 24V AC PCB_RELAY RJ2V-A-A24

Product Code: RJ2V-A-A24

The IDEC RJ2V-A-A24 is a robust PCB power relay designed for high-capacity switching. This DPST-NO relay can handle up to 8A at 24V AC, ensuring reliable operation in demanding applications. It is environmentally conscious, free from hazardous substances such as lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. For added assurance of quality and safety, it is UL recognized, CSA certified, and EN compliant.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 15ms (Max)
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage AC (V) 24
Contact Material Silver-Nickel Alloy
Contacts DPDT-NO
Degree of Protection IP40
Dimensions (mm) 29W x 25.5H x 13D
Minimum Electrical Life 200,000
Minimum Mechanical Life 30,000,000
Model Standard
No. of Poles 2
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -40 to 70
Weight (g) 16
