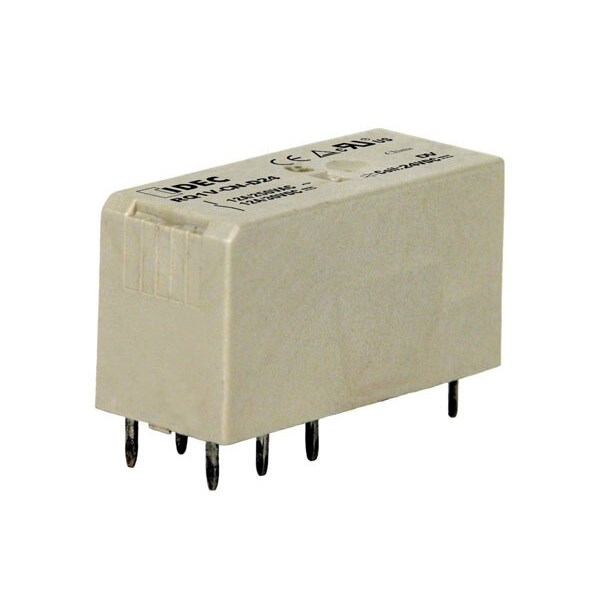

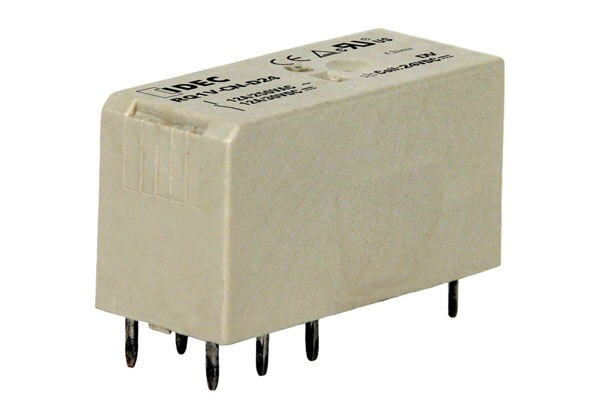

Product Code: RQ1V-CH-A115

Rated current of 16 A with SPDT contact config
Compact size: Width 12.7 mm, Height 29 mm
Durable silver nickel alloy contacts
Electrical life of 100,000 operations
CE, cRuUS, UL Recognized for quality assurance

Specifications

Contacts	SPDT
Coil Voltage AC (V)	115
Dimensions (mm)	12.7W x 29H x 15D
No. of Poles	1
Operational Temperature Range (°C)	-40 to 85
Weight (g)	15
Minimum Mechanical Life	10,000,000
Operating Humidity	45 to 85%
Minimum Electrical Life	100,000
Resistance to Vibrations	10 to 55Hz
Contact Resistance (mO)	100
Product Type	PCB Relay
Brand	IDEC
Coil Voltage	115 VAC
Contact Configuration	SPDT
Contact Material	Silver Nickel Alloy
Contact Resistance	100 MOhm
Depth	15 mm
Electrical Life	100000 Operations
Height	29 mm
Humidity	45-85%
Mechanical Life	10000000 Operations
Model	High Capacity
Number of Poles	1
Operating Time	12 ms
Operational Temperature	-40 to 85 deg C
Rated Current	16 A
Standards and Approvals	CE, cRuUS, UL Recognized File E59804
Vibration Resistance	10-55 Hz
Weight	15 g
Width	12.7 mm

Description

The IDEC RQ1V-CH-A115 is a high-capacity, low-profile PCB relay designed for demanding applications. It features an SPDT contact configuration with a 16A rating at 120V AC. This relay is compatible with LED/Diode plug-in modules and can be easily mounted on a DIN rail socket, ensuring a compact and efficient setup. Its design emphasizes both space-saving and performance, making it a valuable component in any high-power circuitry.
