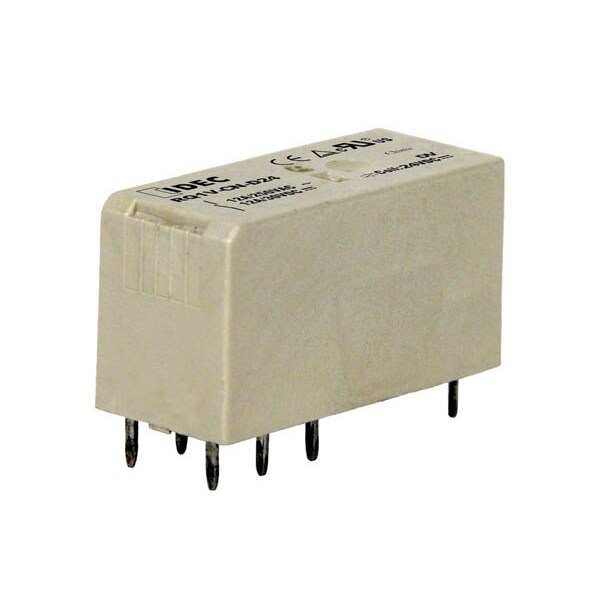

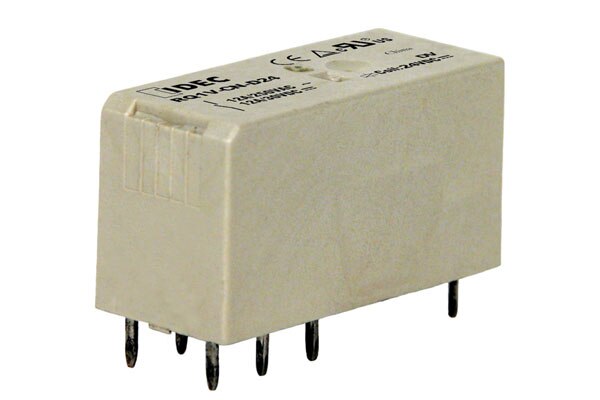

IDEC RQ1V-CM-D12 PCB Relay SPDT 12VDC Coil 1-Pole 12A

Product Code: RQ1V-CM-D12

  • Compact design: 12.7 mm wide, 29 mm high
  • Reliable SPDT contact configuration
  • Durable with 100k operations electrical life
  • Withstands -40 to 85°C operational range
  • Certified with CE, cRuUS, UL approvals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 12
Contacts SPDT
Dimensions (mm) 12.7W x 29H x 15D
No. of Poles 1
Operational Temperature Range (°C) -40 to 85
Weight (g) 15
Minimum Mechanical Life 10,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 100,000
Resistance to Vibrations 10 to 55Hz
Contact Resistance (mO) 100
Product Type PCB Relay
Brand IDEC
Coil Voltage 12 VDC
Contact Configuration SPDT
Contact Material Silver Nickel Alloy
Contact Resistance 100 MOhm
Depth 15 mm
Electrical Life 100000 Operations
Height 29 mm
Humidity 45-85%
Mechanical Life 10000000 Operations
Model Basic
Number of Poles 1
Operating Time 12 ms
Operational Temperature -40 to 85 deg C
Rated Current 12 A
Standards and Approvals CE, cRuUS, UL Recognized File E59804
Vibration Resistance 10-55 Hz
Weight 15 g
Width 12.7 mm

Description

The IDEC RQ1V-CM-D12 is a compact, high-capacity relay suitable for PCB applications. It features an SPDT contact configuration with a 12A rating at 12V DC. This relay is designed to work with LED/Diode plug-in modules and can be easily mounted on a DIN rail socket. Its low-profile design ensures space efficiency without compromising on performance.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
